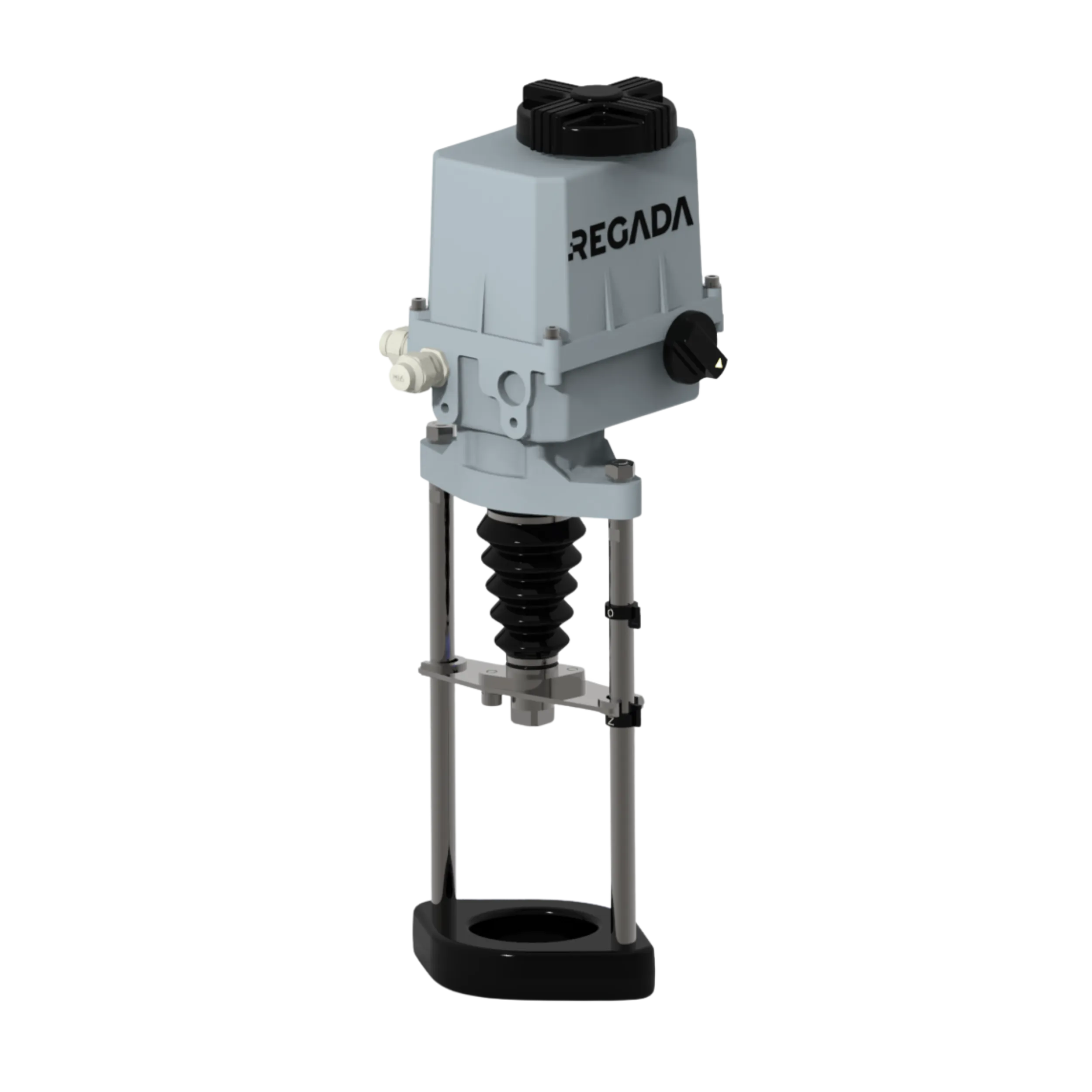

Electric linear actuator ST 0

Electric linear actuator ST 0

Electric linear actuator ST 0

Type number: 490
Industry use: Energy, Water, Industry
Enclosure protection: IP 54, IP 67, IP 68
Switching-off thrust: 360 to 4500 N
Operating speed: 5 to 40 mm/min
Operating stroke: 8 to 40 mm
Weight: 2.5 to 4.5 kg
Ambient temperature: -25 to 55 °C
Mouting position: any, in a horizontal position with columns above each other
contact Configurator

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

Standard equipment

  • Supply voltage:
    • 230 V / 50 Hz
  • Terminal board connection
  • Control variants:
    • 1 thrust switch + 1 position switch
    • 2 thrust switches
  • Local position indicator
  • Pillars mechanical connection
  • Manual control
  • Enclosure protection IP 54

Additional equipment

  • Supply voltage:
    • 220 V, 24 V / 50 Hz
    • 120 V, 110 V / 60 Hz
  • Position transmitter:
    • potentiometer single/double, 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    • electronic position transmitter, active/passive, 2-wire/3-wire, 0/4 to 20 mA
  • 2 additional position switches
  • Mechanical flange connection
  • Gold coated contacts of microswitches
  • Enclosure protection IP 67, IP 68
