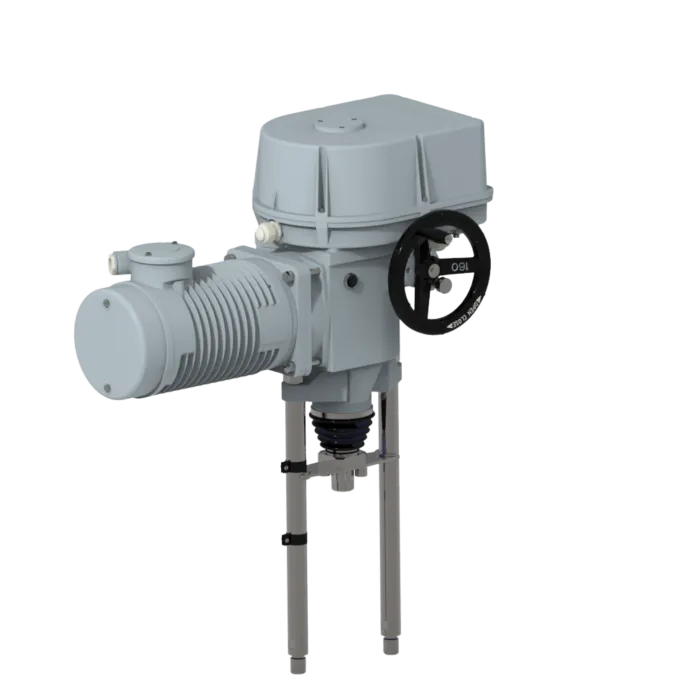

Electric linear actuator MTR

Name: Electric linear actuator MTR
Brand: Regada

Type number: 52420

Enclosure protection: IP 67, IP 55

Switching-off thrust: 4000 to 25000 N

Operating speed: 32 to 120 mm/min

Operating stroke: 12.5 to 100 mm

Weight: 27 to 46 kg

Ambient temperature: -25 to 55 °C

Mouting position: with the motor axis in a horizontal position (deviation +/-15°)

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

+421 51 7480 462

regada@regada.sk

Standard equipment:

Supply voltage 230 V AC
Terminal board connection
2 thrust switches
2 position switches
Space heater
Mechanical connection - pillars
Mechanical position indicator
Manual control
Enclosure protection IP 55

Additional equipment

2 additional position switches
Position transmitterl:
- single/double potentiometer 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
- electronic position transmitter, passive/active, 2-wire/3-wire, 0/4 to 20 mA from R/I converter (with/without source)
- CPT, DCPT 3M, passive/active, 2-wire/3-wire, 4 to 20 mA (capacitive transmitter with/without source)
Mechanical connection - flange
Enclosure protection IP 67
