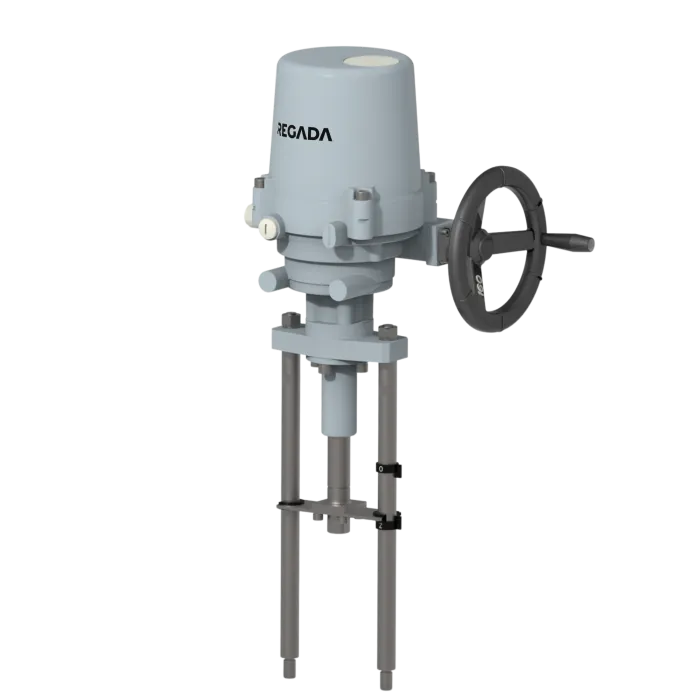

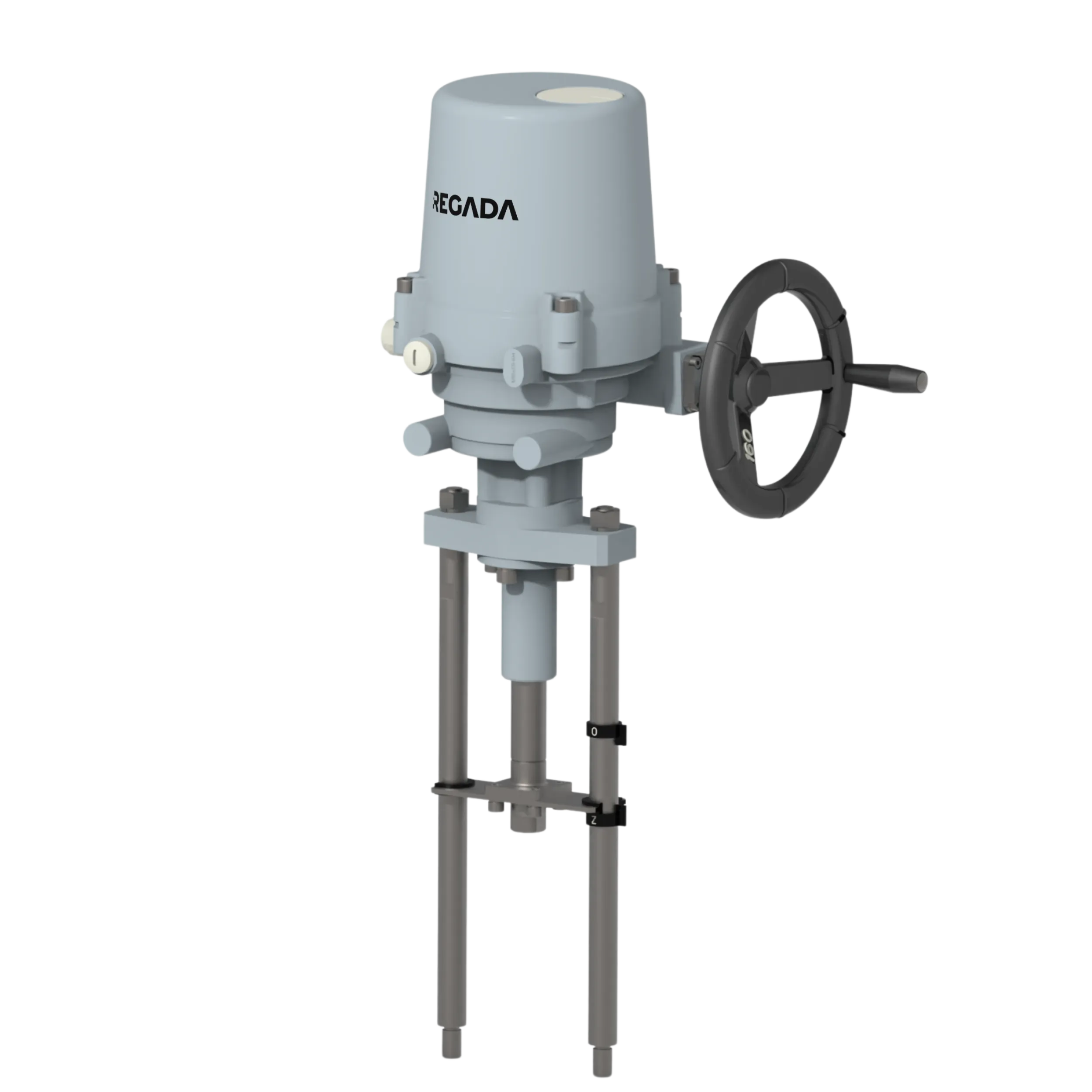

Electric linear actuator UL 0

Electric linear actuator UL 0

Electric linear actuator UL 0

Type number: 540
Industry use: Energy, Water, Industry
Enclosure protection: IP 66, IP 68
Switching-off thrust: 1400 to 6900 N
Operating speed: 10 to 80 mm/min
Operating stroke: 4 to 40 mm
Weight: 6.5 to 8.5 kg
Ambient temperature: -25 to 55 °C
Mouting position: any, in a horizontal position with columns above each other
contact Configurator

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

Standard equipment

  • Supply voltage:
    • 230 V / 50 Hz
  • Terminal board connection
  • Thermal protection of electromotor
  • 2 thrust switches
  • 2 position switches
  • 2 additional position switches
  • Space heater with thermal switch
  • Mechanical connection - pillars
  • Mechanical position indicator
  • Manual control
  • Enclosure protection IP 66

Additional equipment

  • Supply voltage:
    • 220 V, 24 V / 50 Hz
  • Position transmitter:
    • potentiometer single/double, 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    • electronic position transmitter, active/passive, 2-wire/3-wire, 0/4 to 20 mA
    • electronic position transmitter, active/passive, 3-wire, 0 to 10 V
    • current DCPT 3M, active/passive, 2-wire, 4 to 20 mA
  • Gold coated contacts of microswitches
  • Mechanical connection according to ISO 5210 - flange size F05 (Y/35)
  • Enclosure protection IP 68
