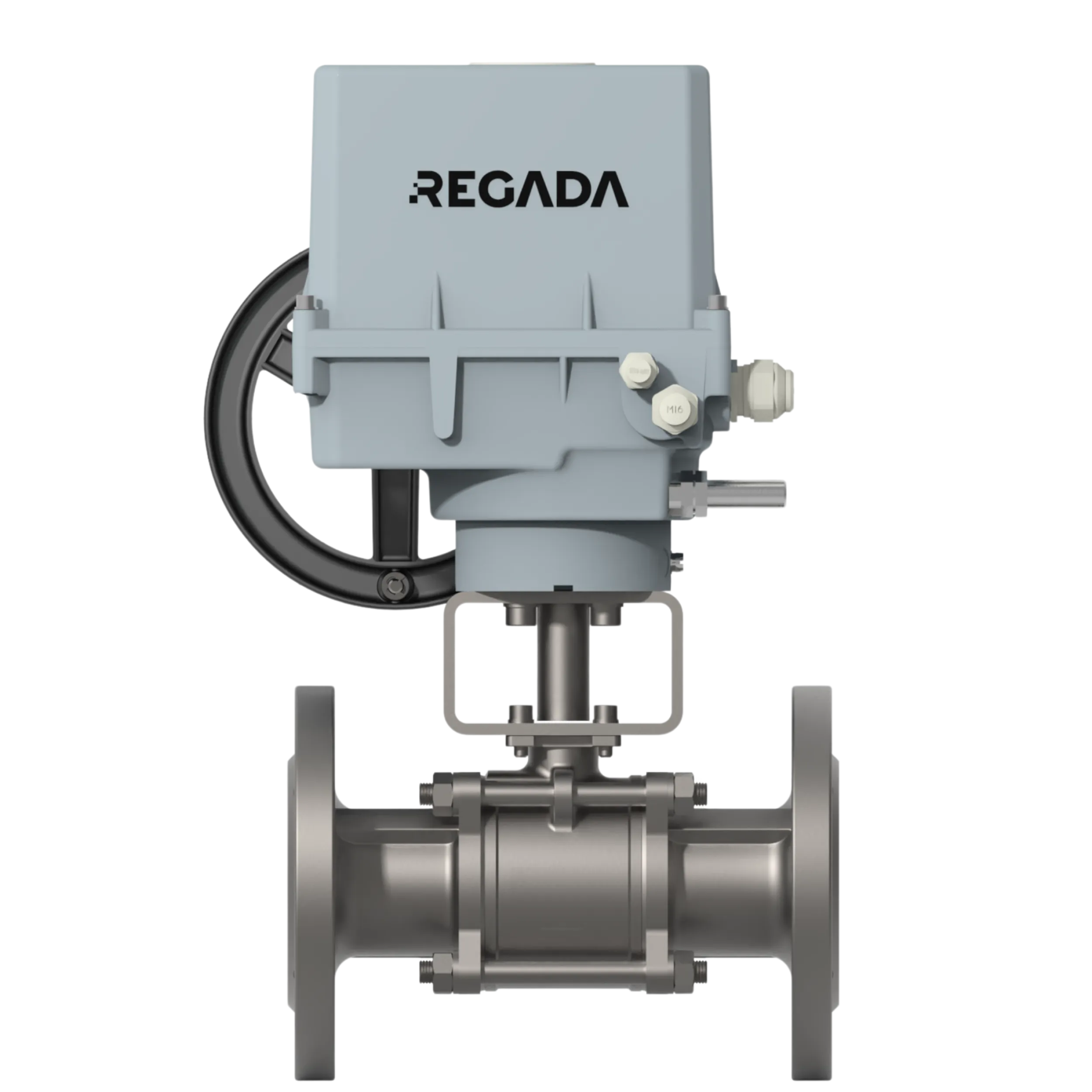

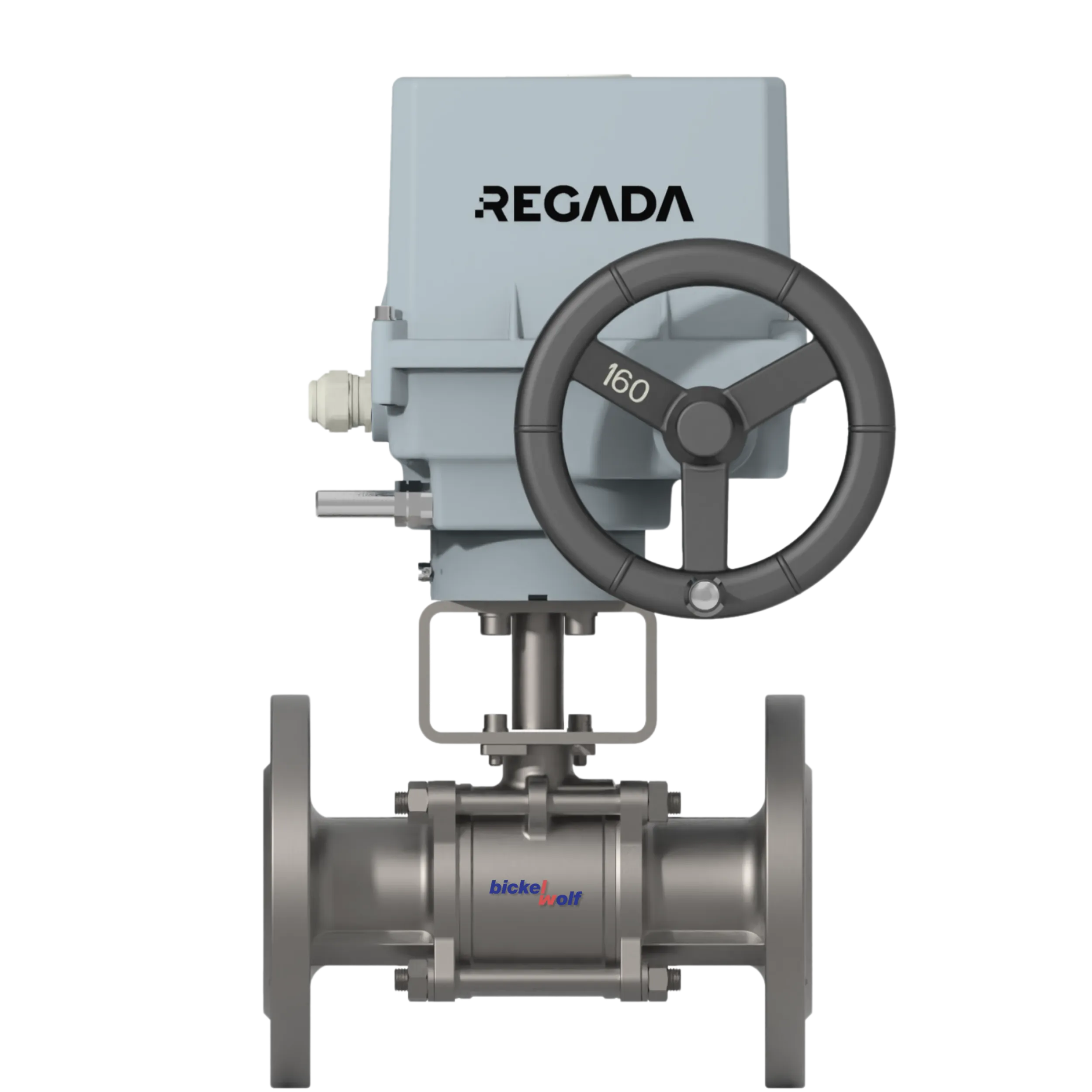

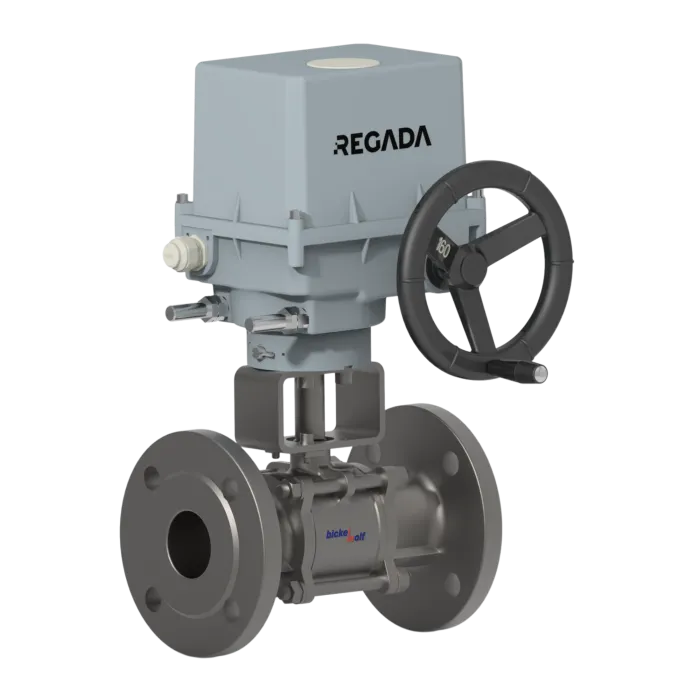

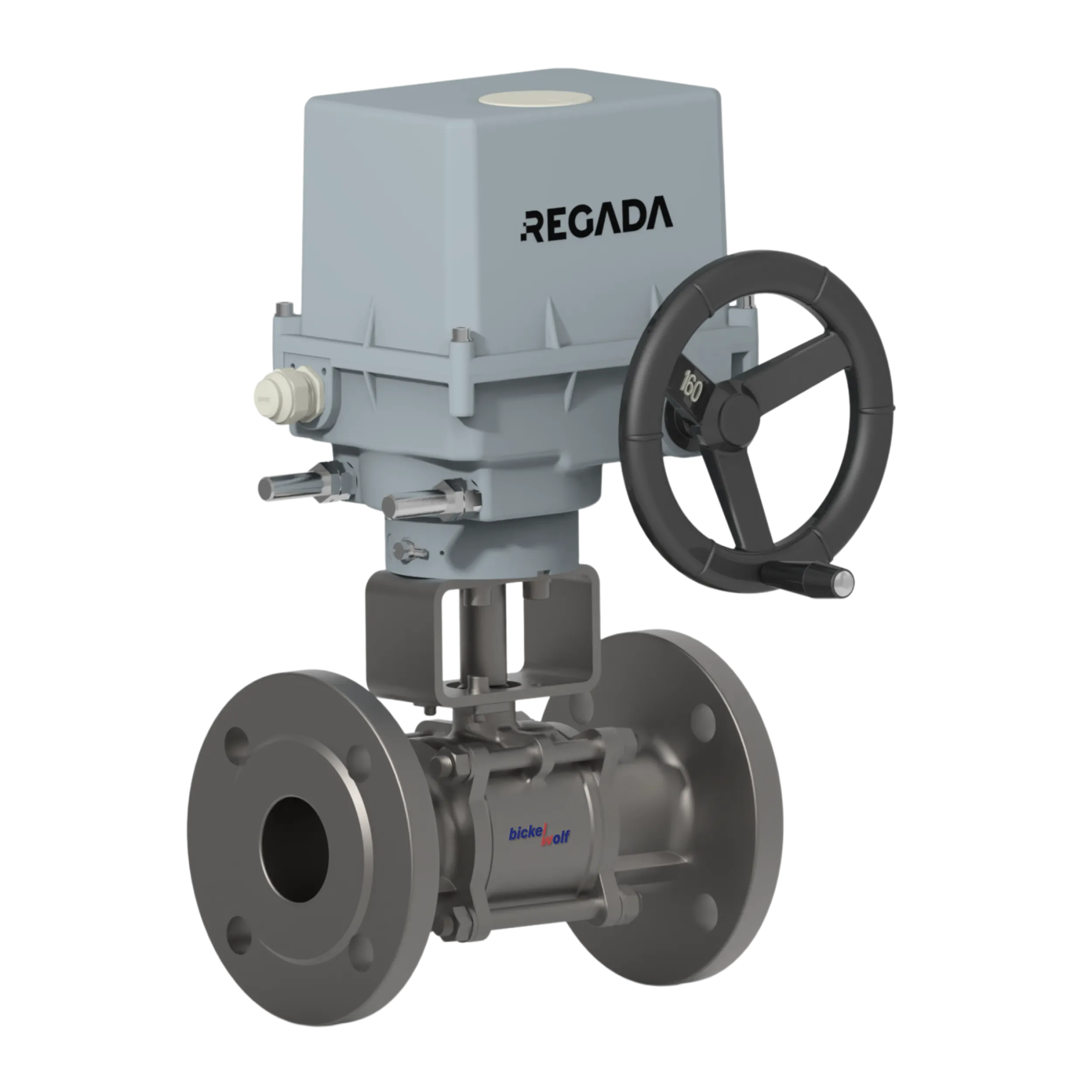

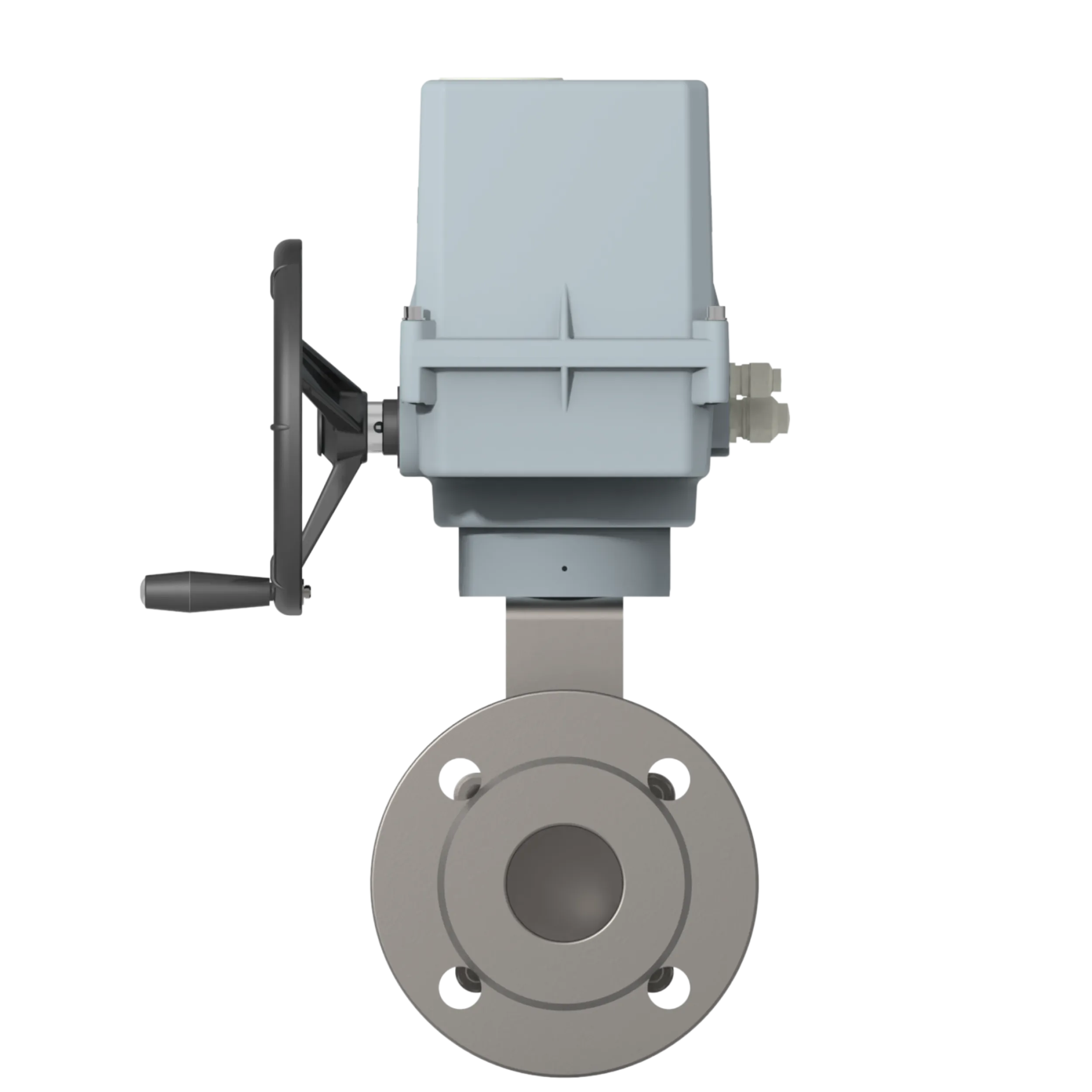

Three-pieces flanged ball valve

Three-pieces flanged ball valve

Three-pieces flanged ball valve

Body construction: DN 15, DN 100
Working pressure: PN 40
Working temperature: -20 to 220 °C
Tightness: Class A
Construction according to: EN 12516
Draft according to: ASME B16.34
Connection parameters: RF flanges according to ISO PN40 to DN50, ISO PN16 above DN50, RF flanges according to EN 1092-1 PN16/40
ATEX: group II category 2G/2D Zone 1 and 21, Zone 2 and 22
Materials: Telo – ASTM A216 WCB, resp. ASTM A351 CF8M, Ball – ASTM A351 CF8M, Seal - PTFE TFM 1600 (PMD FF), Shaft seal – PTFE with 25% grafoil
Leak test: EN 12266-1 class A

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

3 pieces carbon steel ball valve with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air. Fugitive emission according to TA LUFT for an excellent tightness on the stem and to prevent external leakage. PTFE filled with graphite packing, Viton® O ring gasket and PTFE filled with stainless steel seat. Compatible with explosive atmosphere, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Thanks to the ISO 5211 plate, an actuator can be installed on the valve.

More information on the manufacturer's website.
