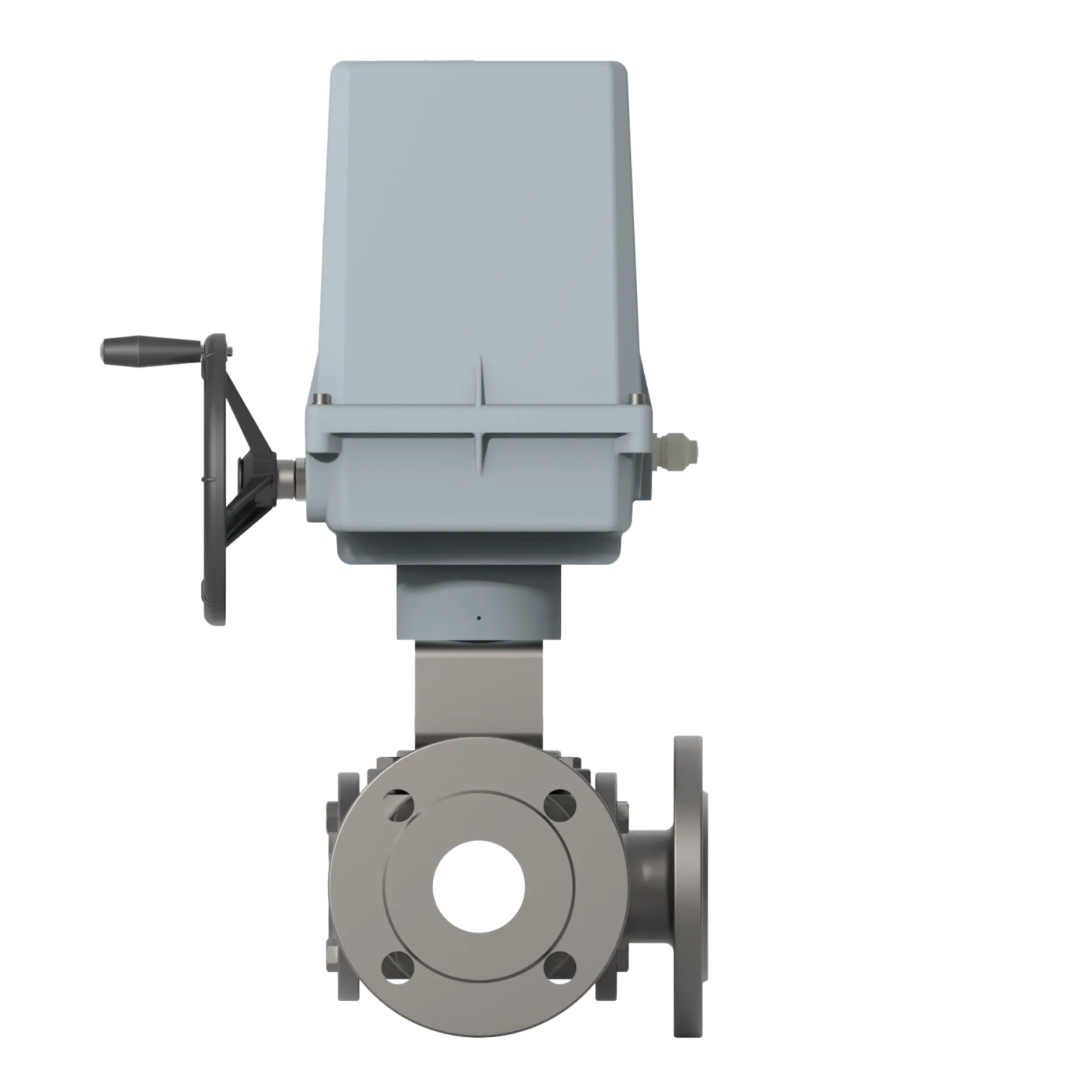

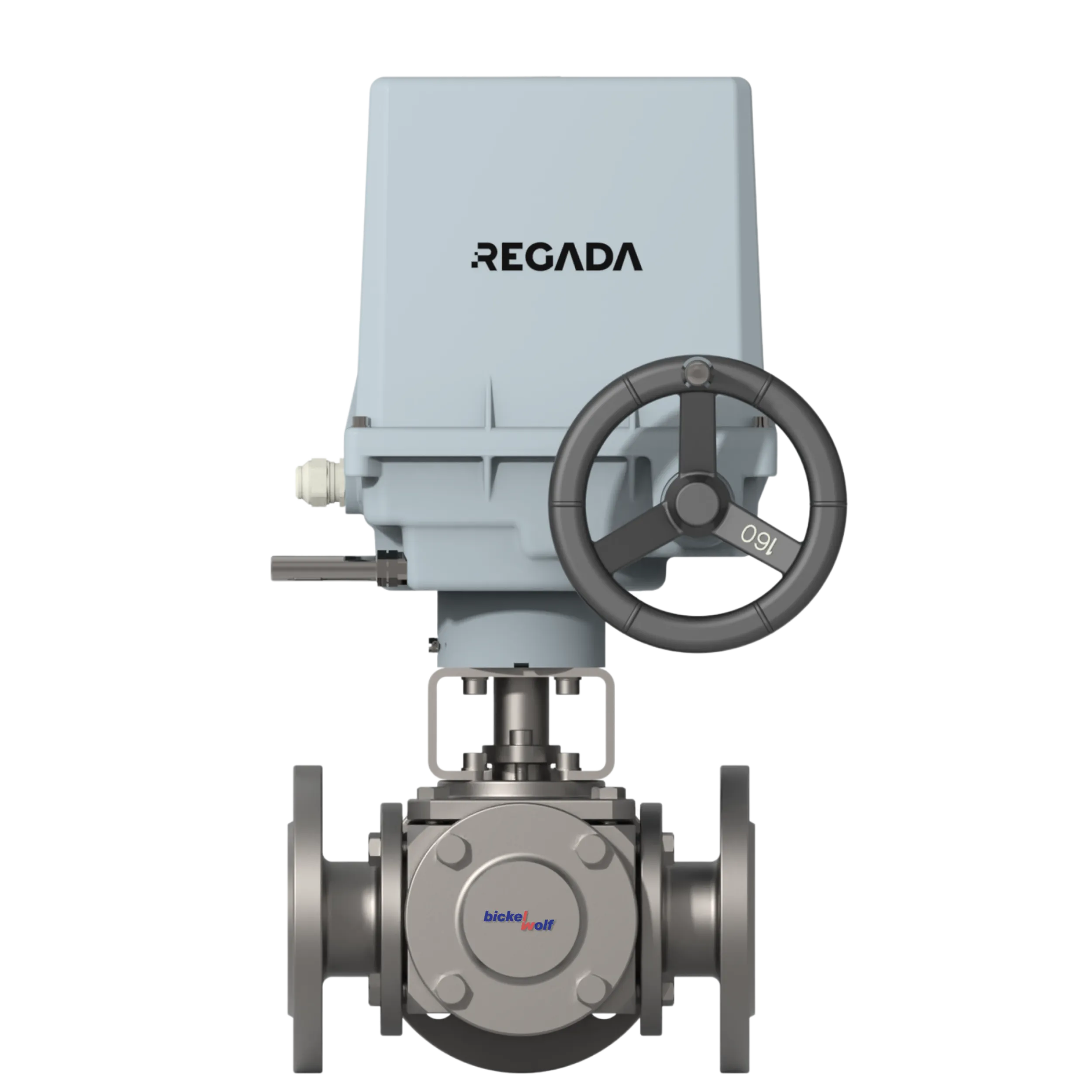

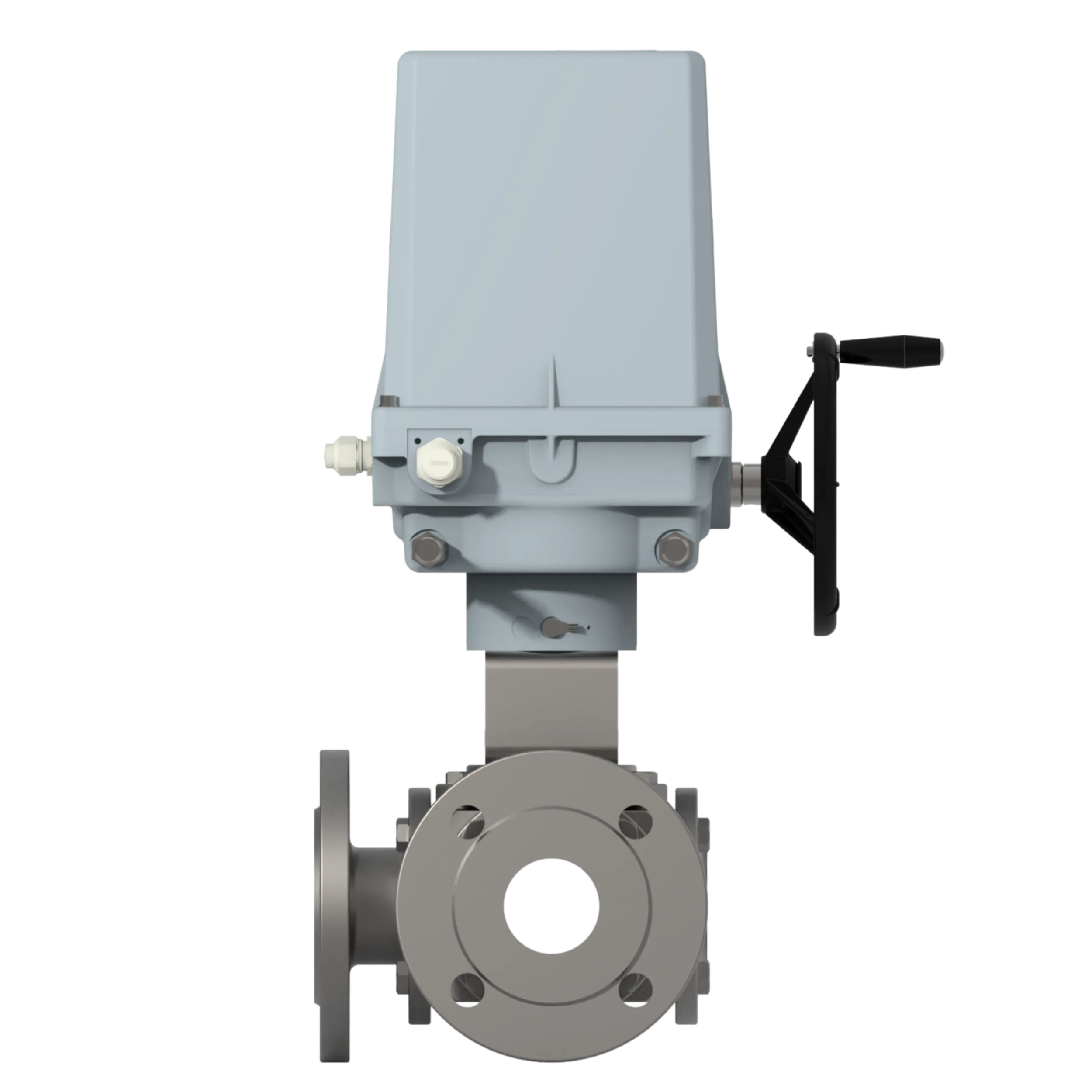

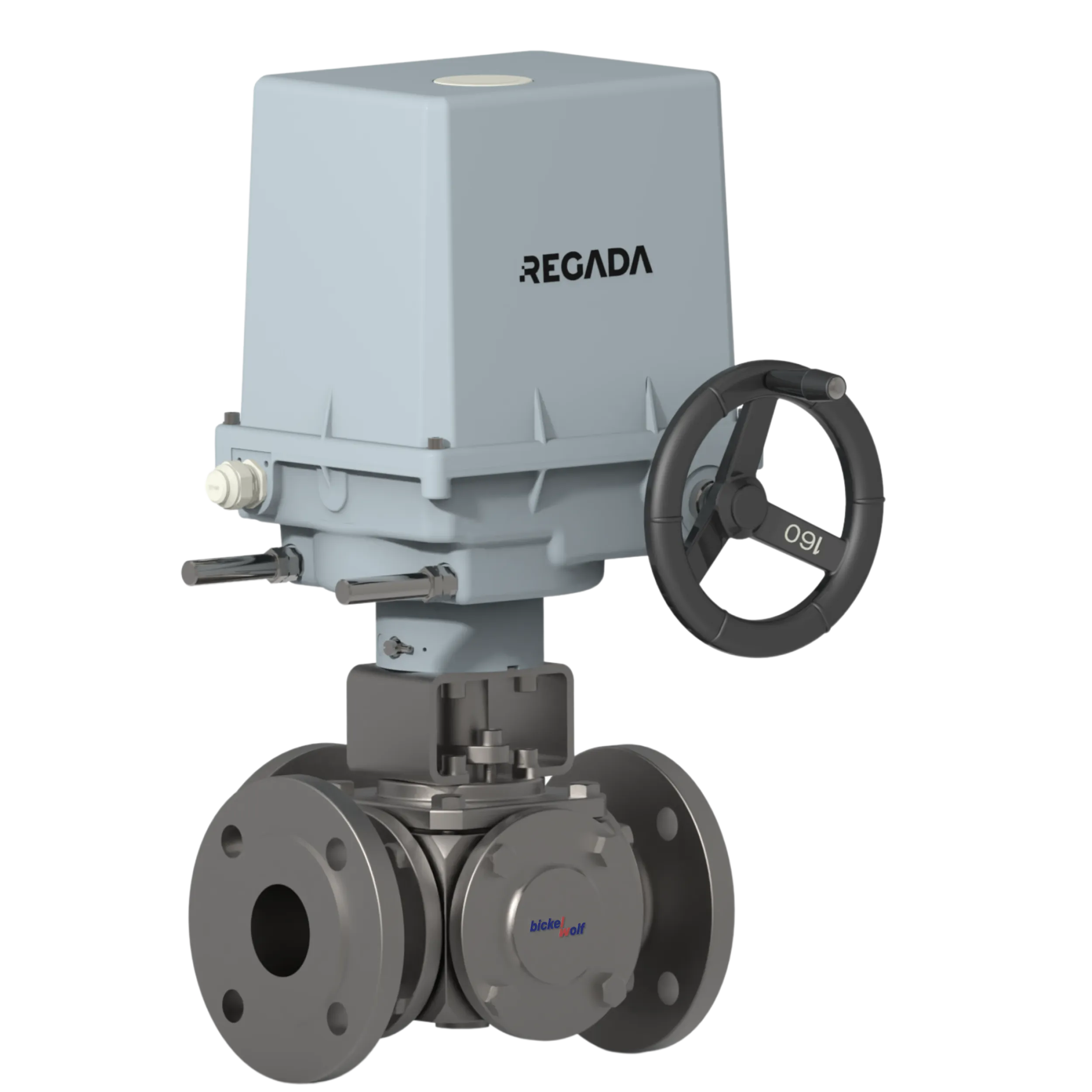

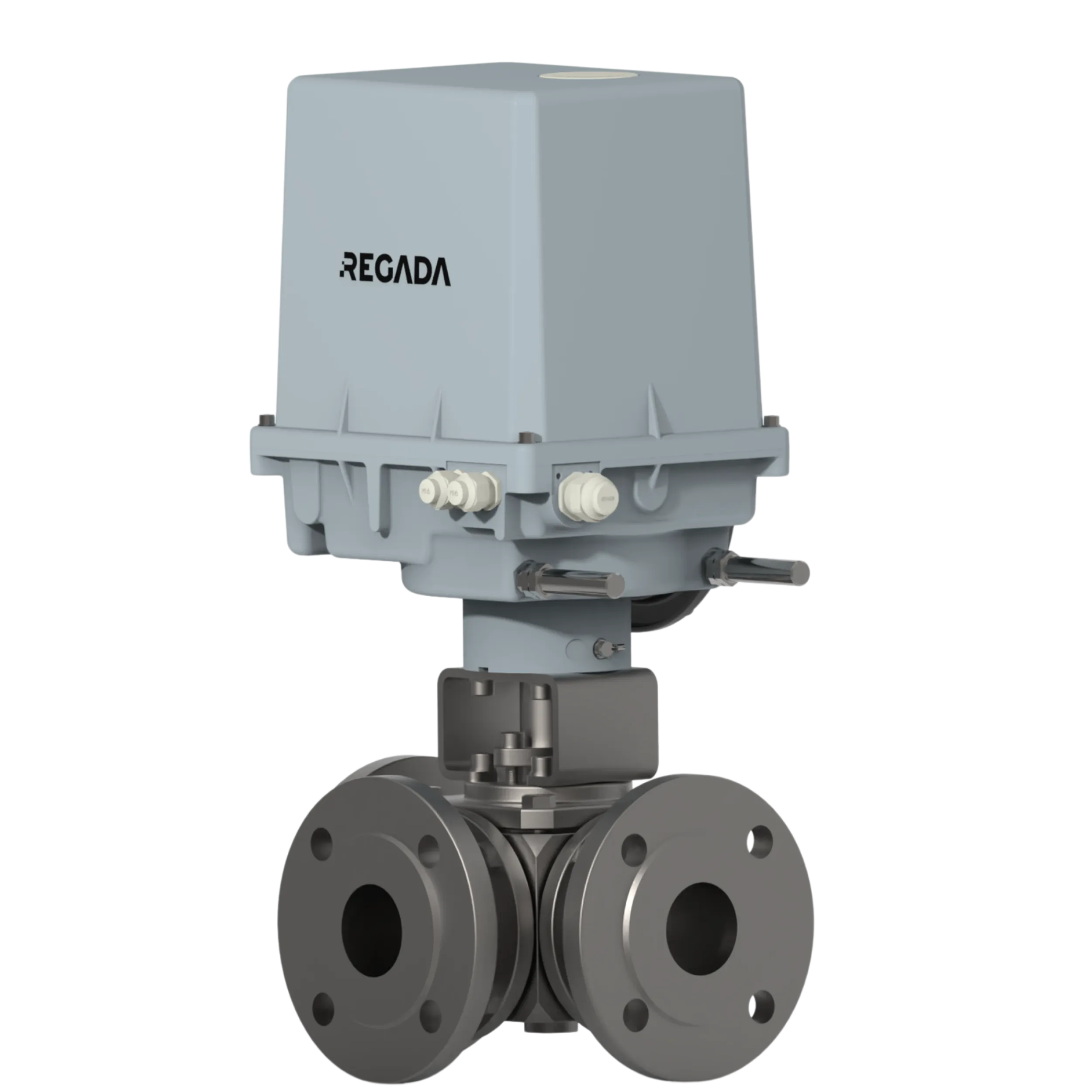

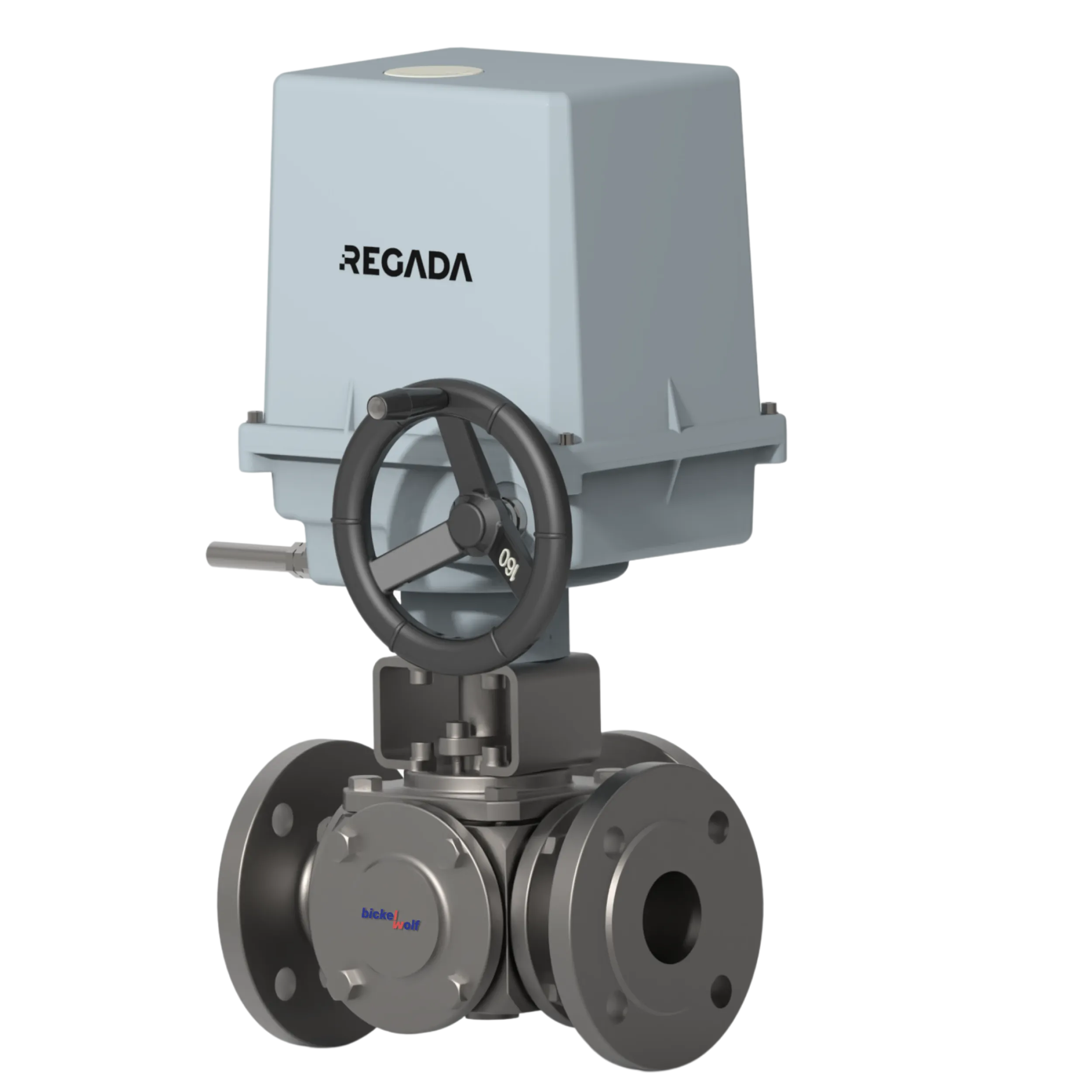

Three-way flanged ball valve

Three-way flanged ball valve

Three-way flanged ball valve

Body construction: DN 25, DN 150
Working pressure: PN 16
Working temperature: -20 to 150 °C
Tightness: Class A
Construction according to: EN 12516
Draft according to: ASME B16.34
Connection parameters: RF flanges according to EN 1092-1 PN16/40
ATEX: group II category 2G/2D Zone 1 and 21, Zone 2 and 22
Materials: Telo – ASTM A216 WCB, resp. ASTM A351 CF8M, Ball – ASTM A351 CF8M, Sealing – PTFE with 15% glass fibers
Leak test: EN 12266-1 class A

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

Three-way flanged ball valves are used for operation in industrial applications such as the chemical industry, petrochemical plants, hydraulic systems, water management or compressed air systems.

More information on the manufacturer's website.
