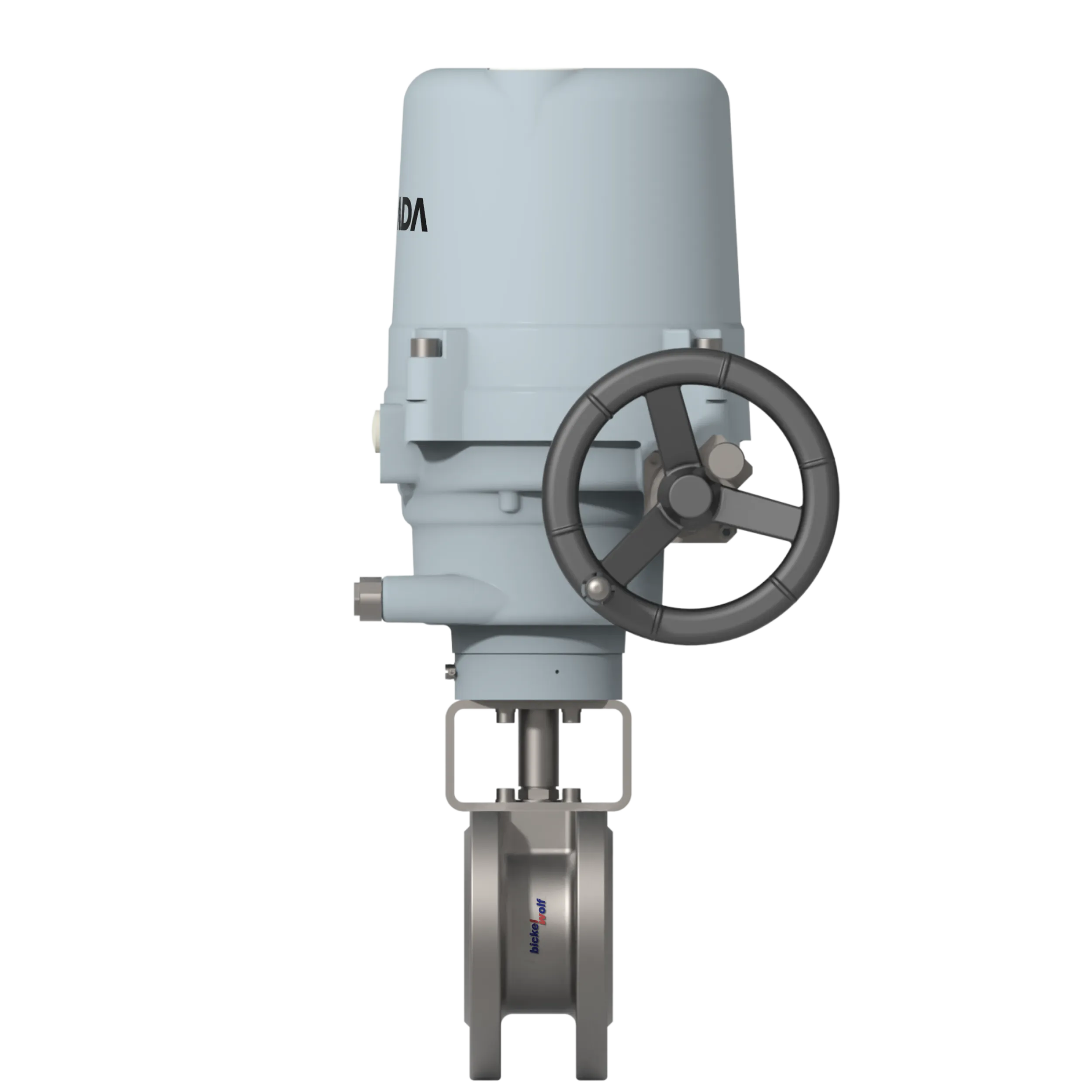

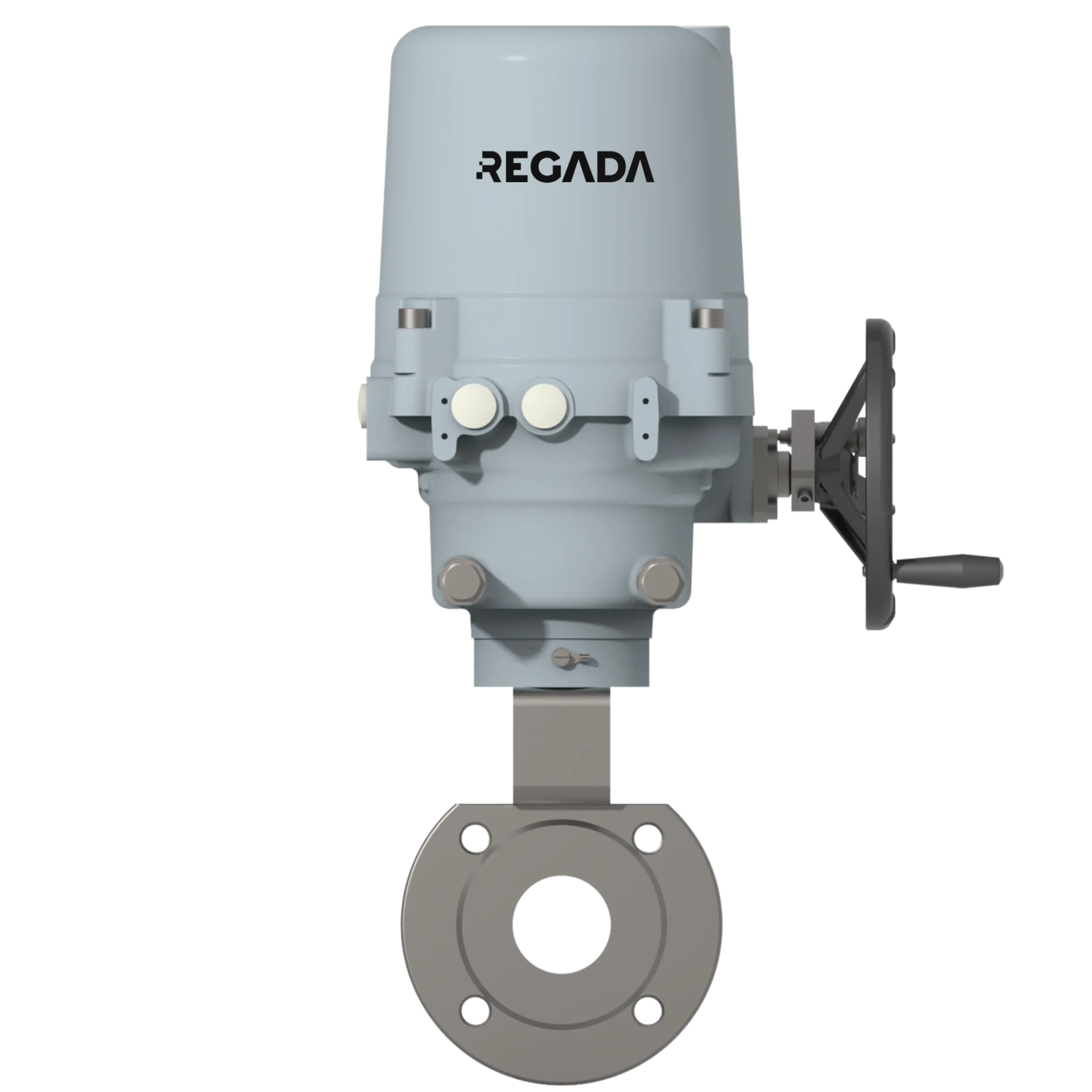

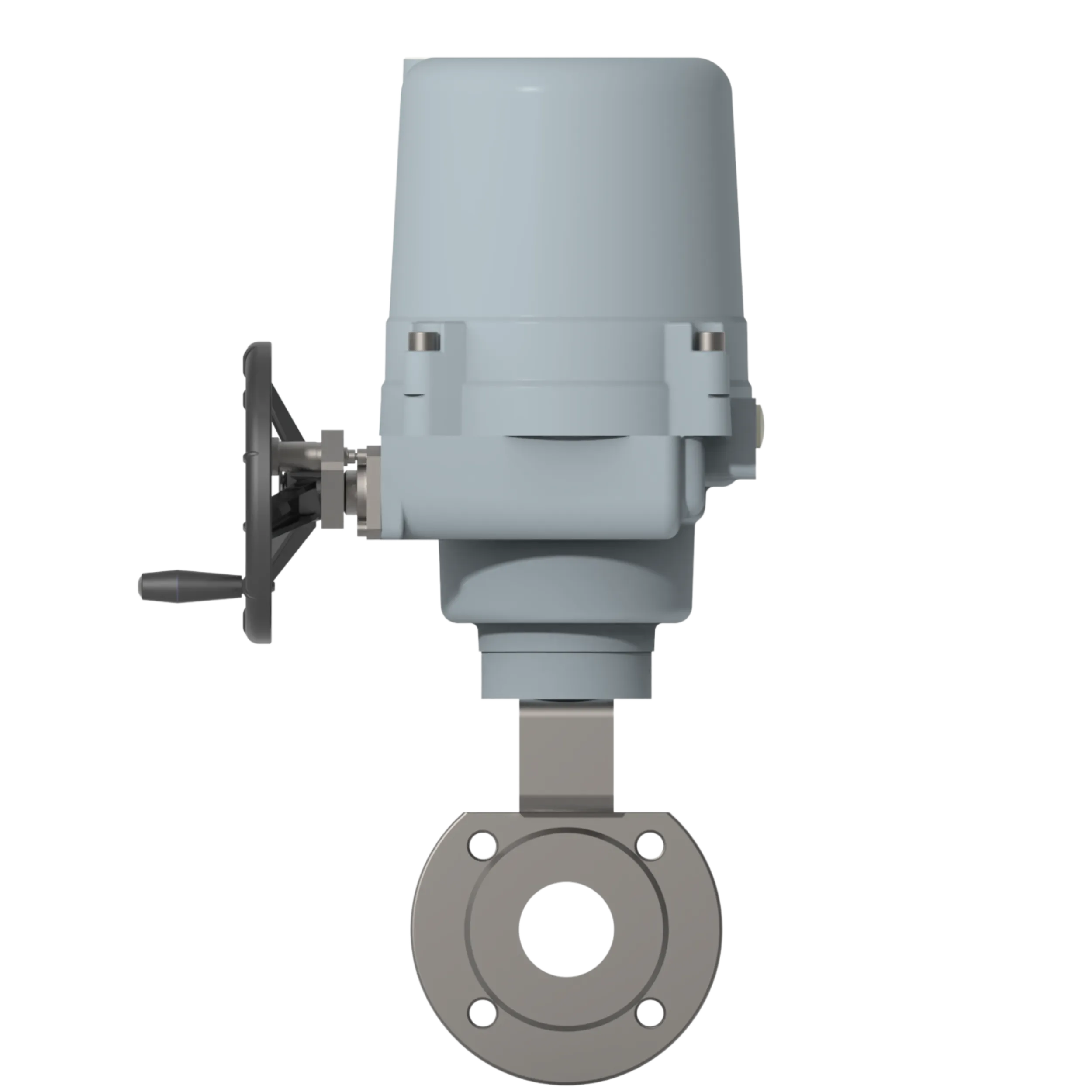

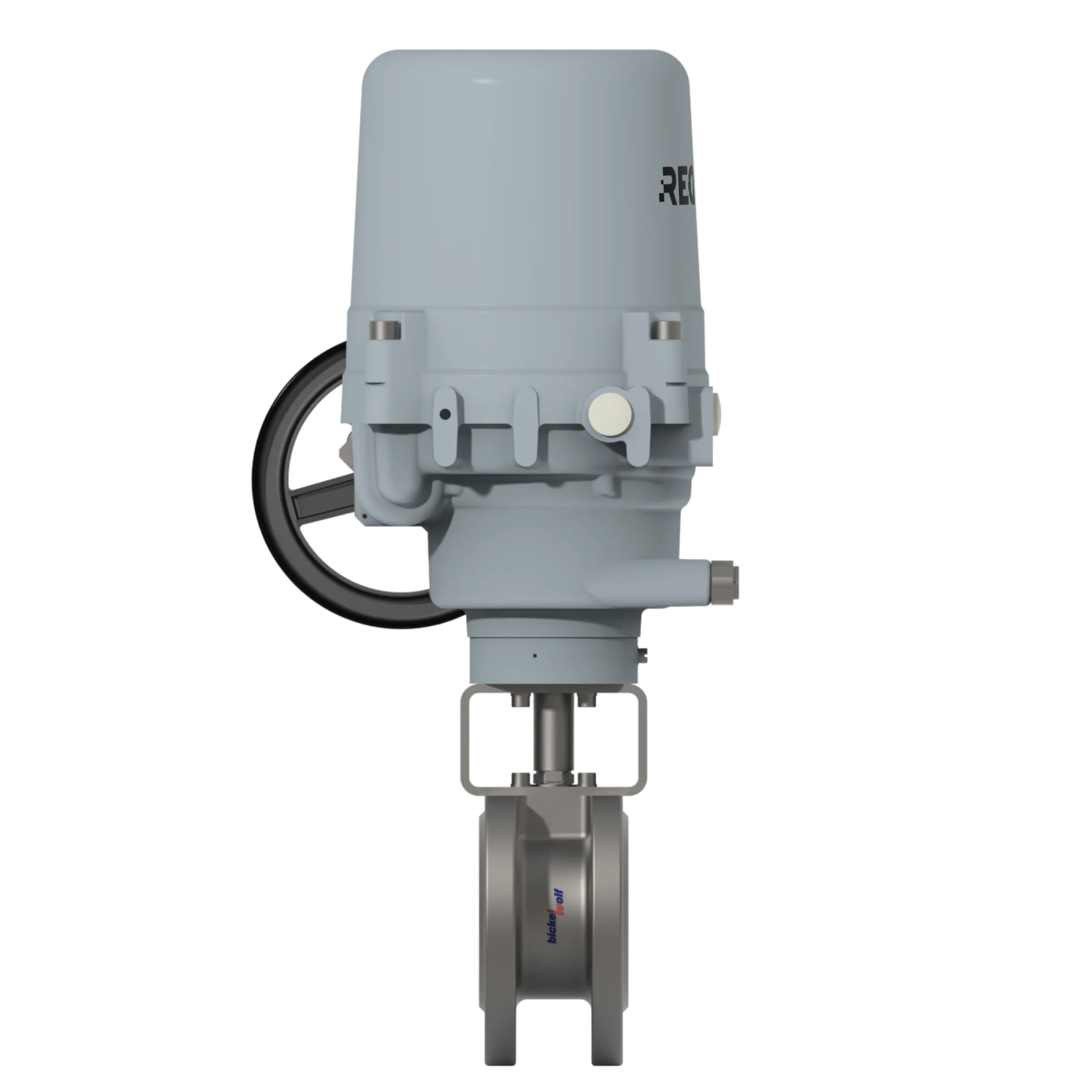

One-piece flanged ball valve

One-piece flanged ball valve

One-piece flanged ball valve

Body construction: DN 15, DN 150
Working pressure: PN 16
Working temperature: -20 to 180 °C
Tightness: Class A
Construction according to: EN 12516
Draft according to: ASME B16.34
Marking according to: IN 19
Connection parameters: RF flanges according to ISO PN40 to DN50, ISO PN16 above DN50, RF flanges according to EN 1092-1 PN16/40
Materials: Telo – ASTM A351 CF8M, Ball – ASTM A351 CF8M, Sealing – PTFE with 15% glass fibers, Shaft seal – PTFE
Leak test: EN 12266-1 class A

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

1-piece flanged ball valves are used for fully Open/Close duty in industrial applications such as the chemical and pharmaceutical industries, petrochemical plants, hydraulic systems, and compressed air systems, with flow of media such as water, waste water, natural gas, oils and chemicals. PTFE packing and gasket, FKM gasket on stem and TFM1600 seat (or PTFE filled with 15% glass fiber seat for DN125-150). Locking device from DN25 to DN100. Thanks to the ISO 5211 plate, an actuator can be installed on the valve.

More information on the manufacturer's website.
