Valves controlled by electric actuators
Ball valves

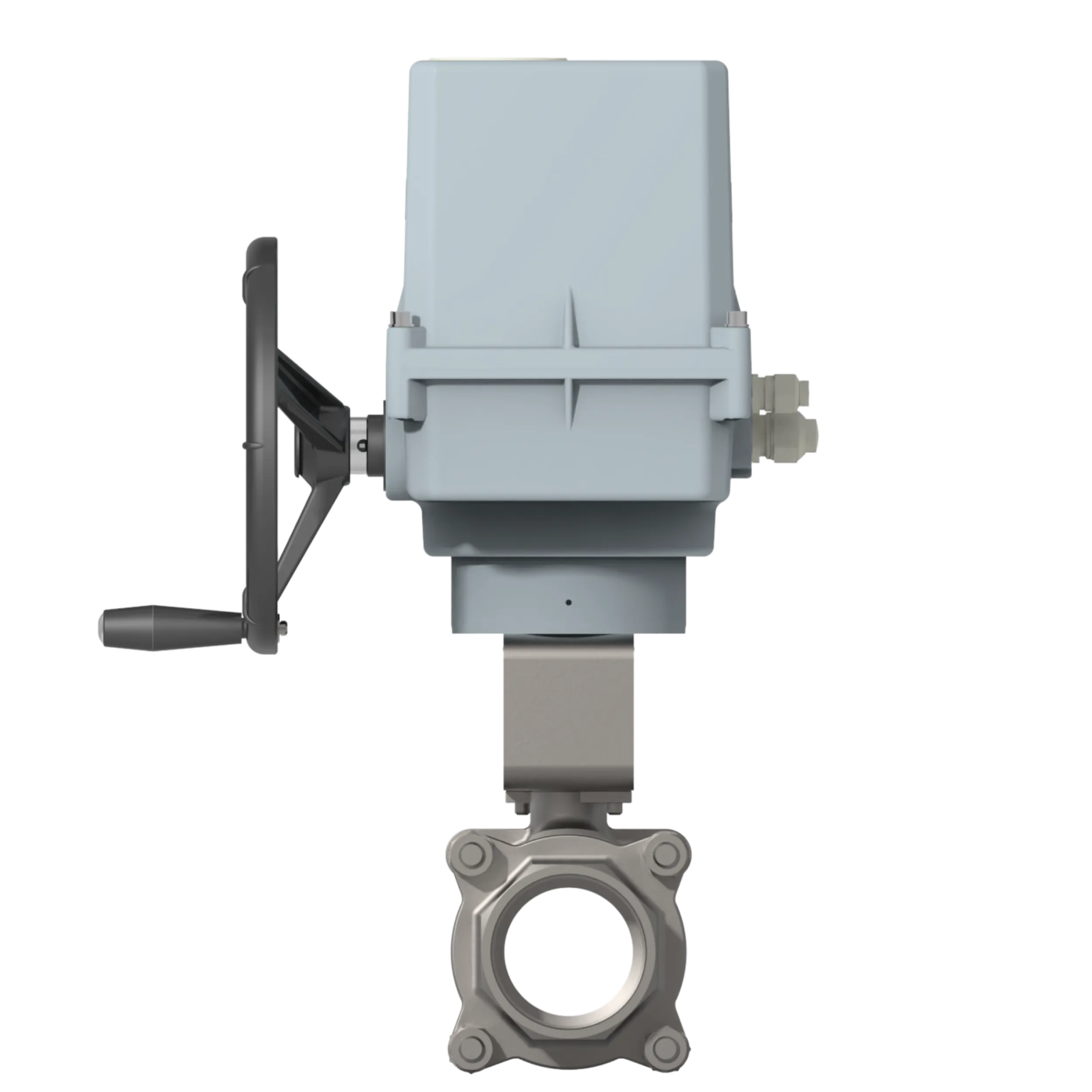

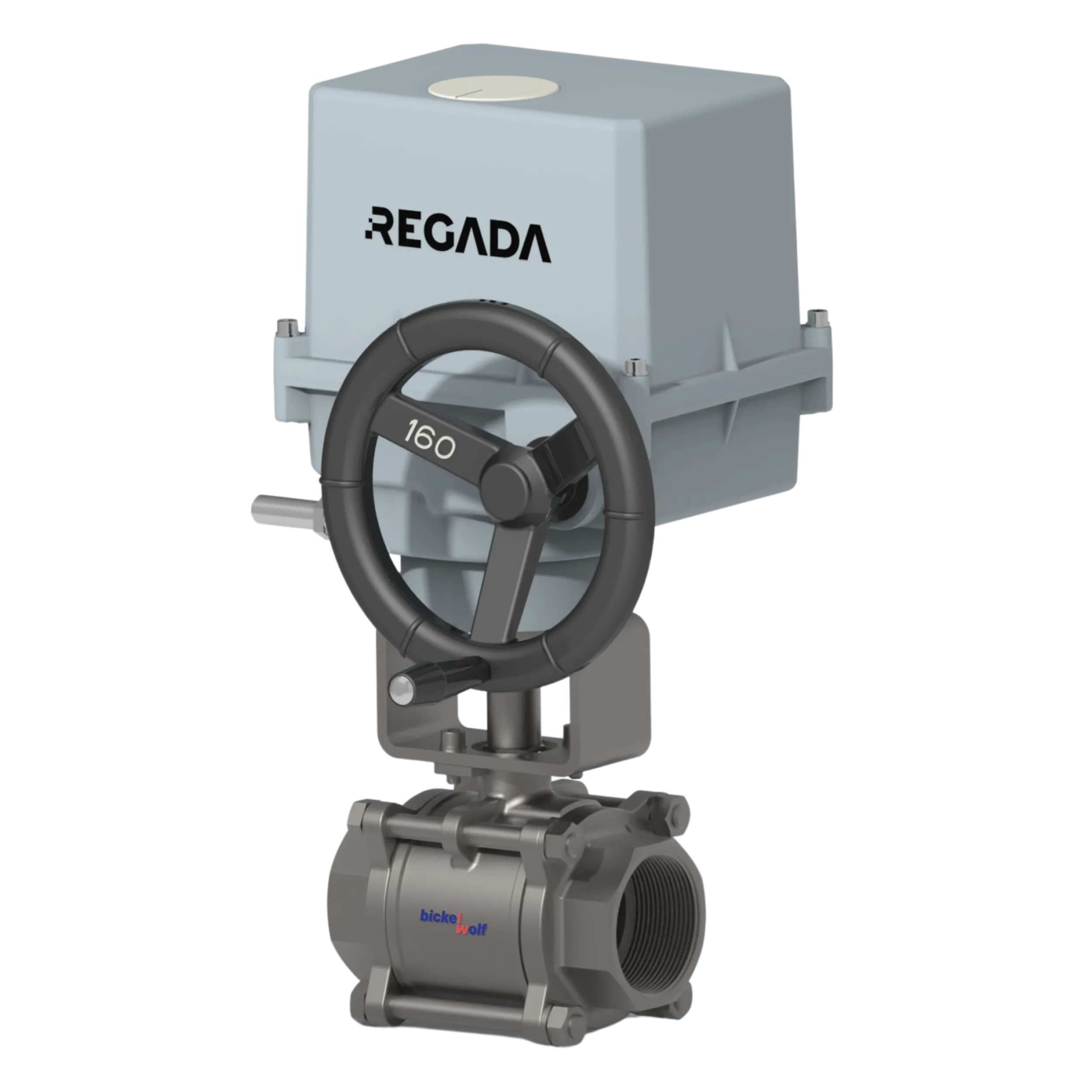

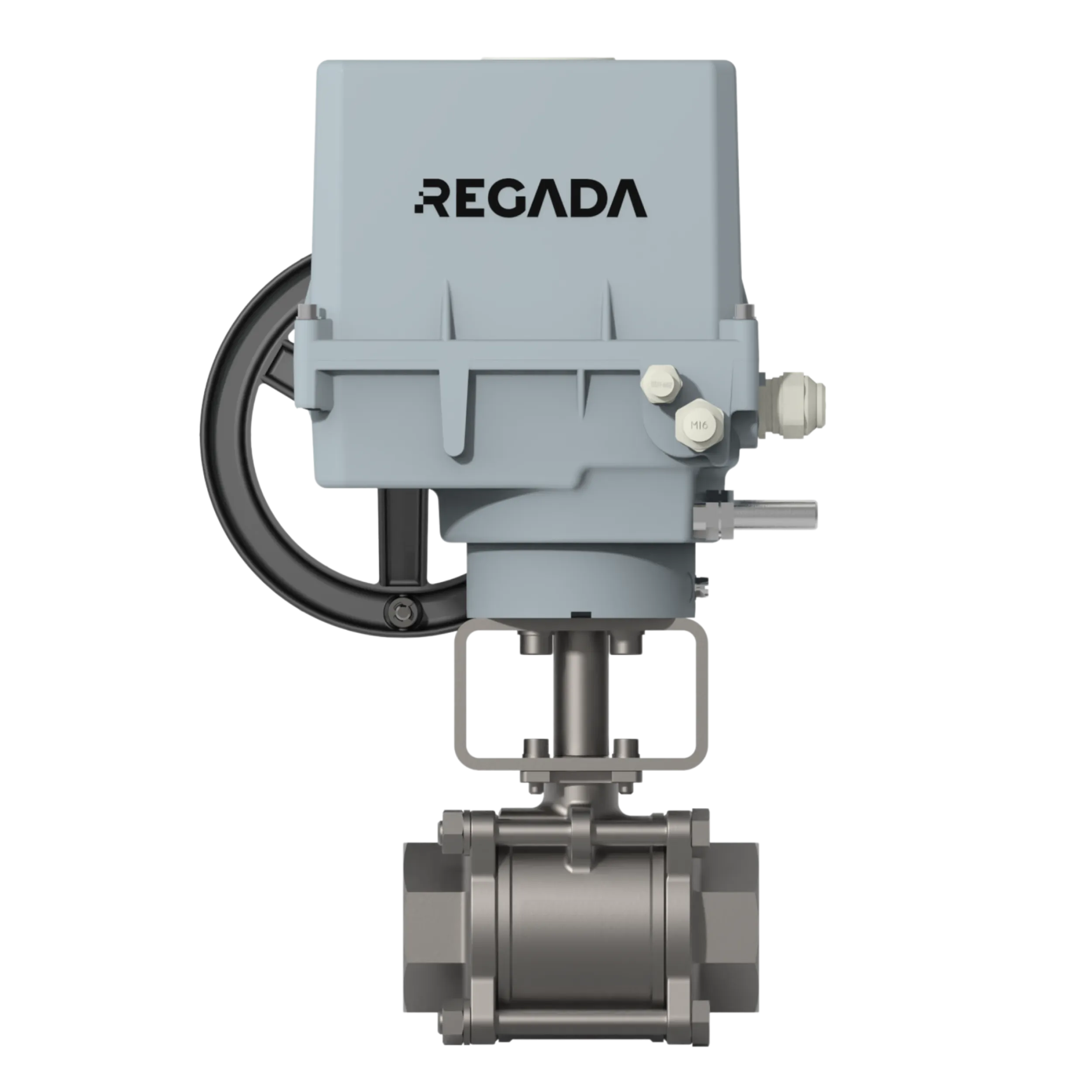

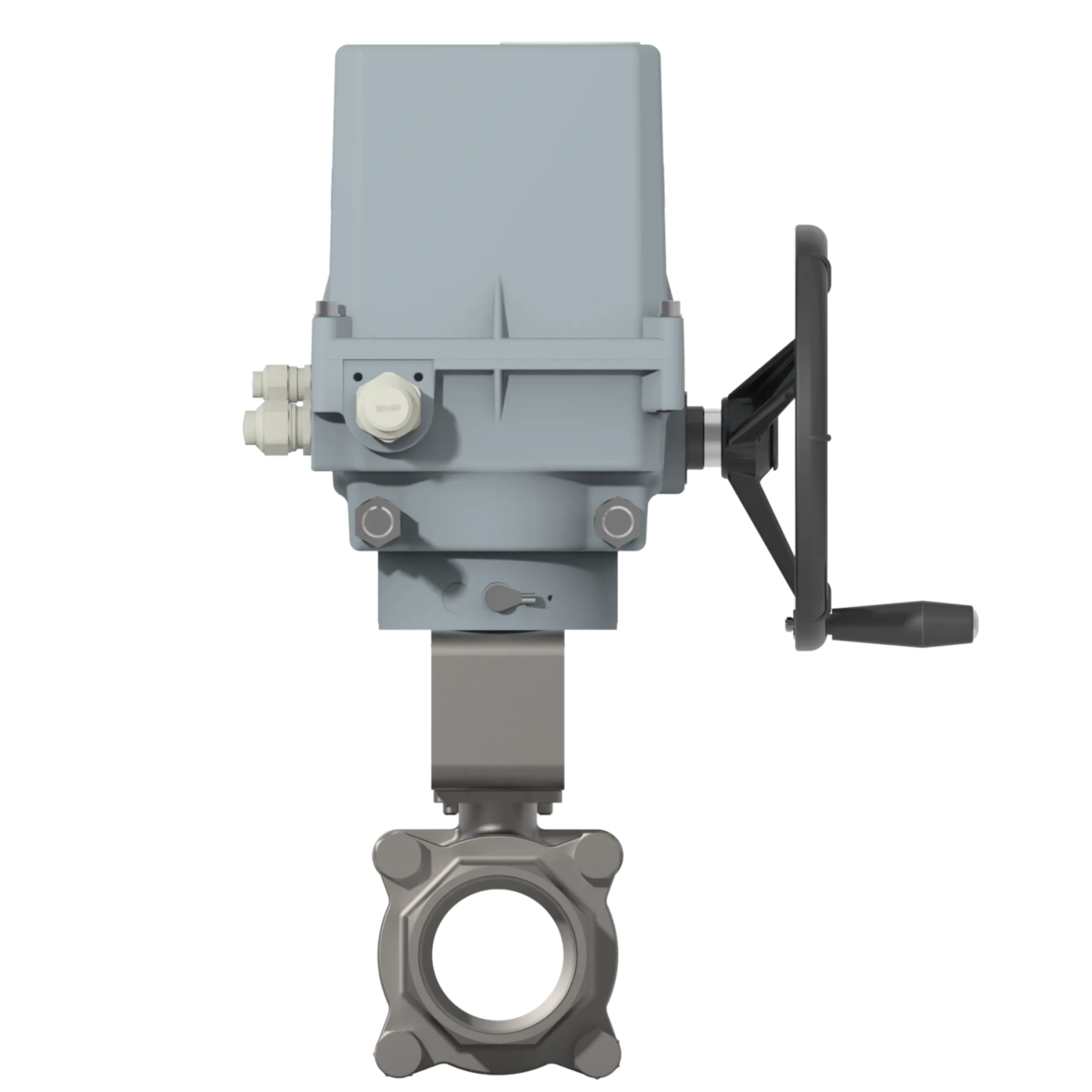

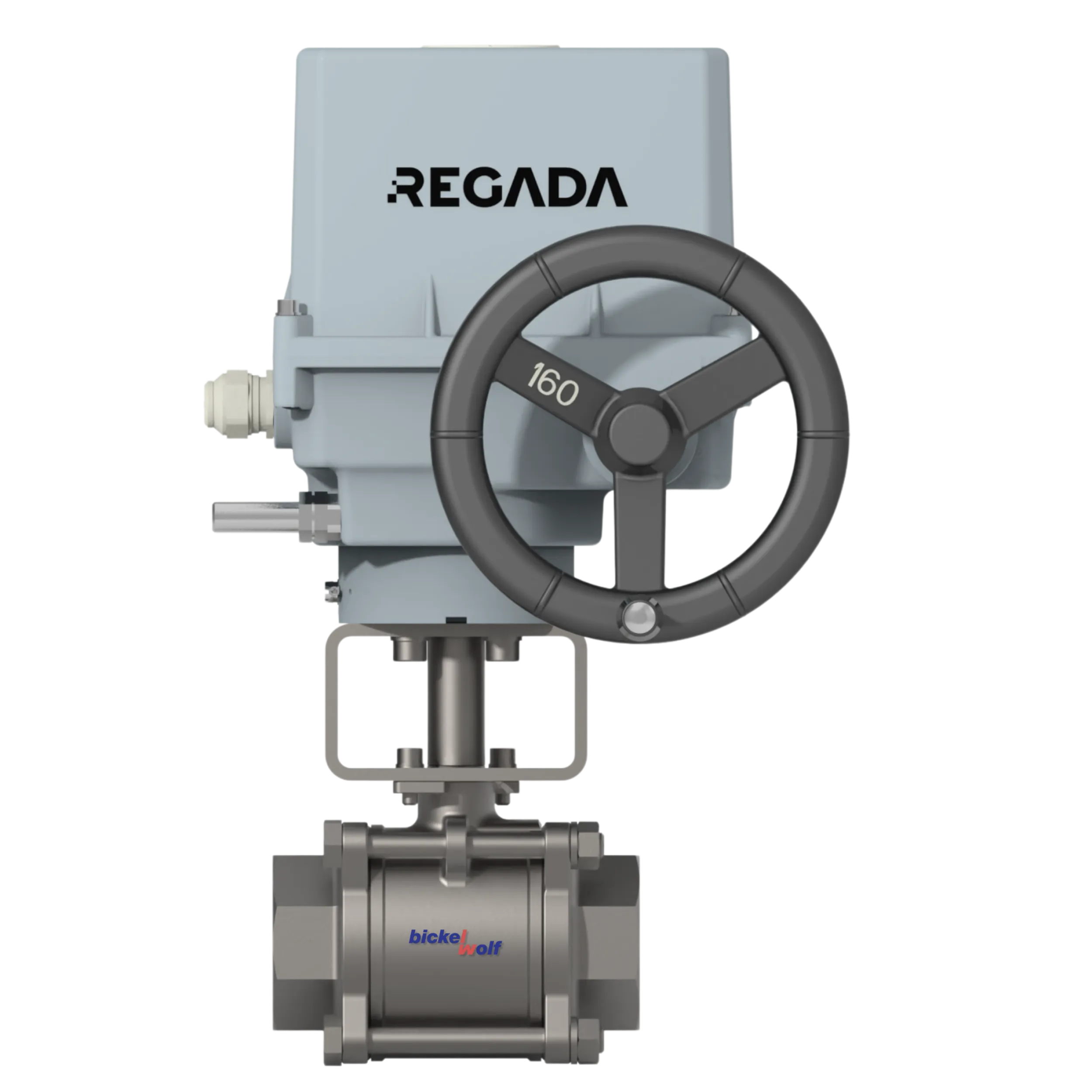

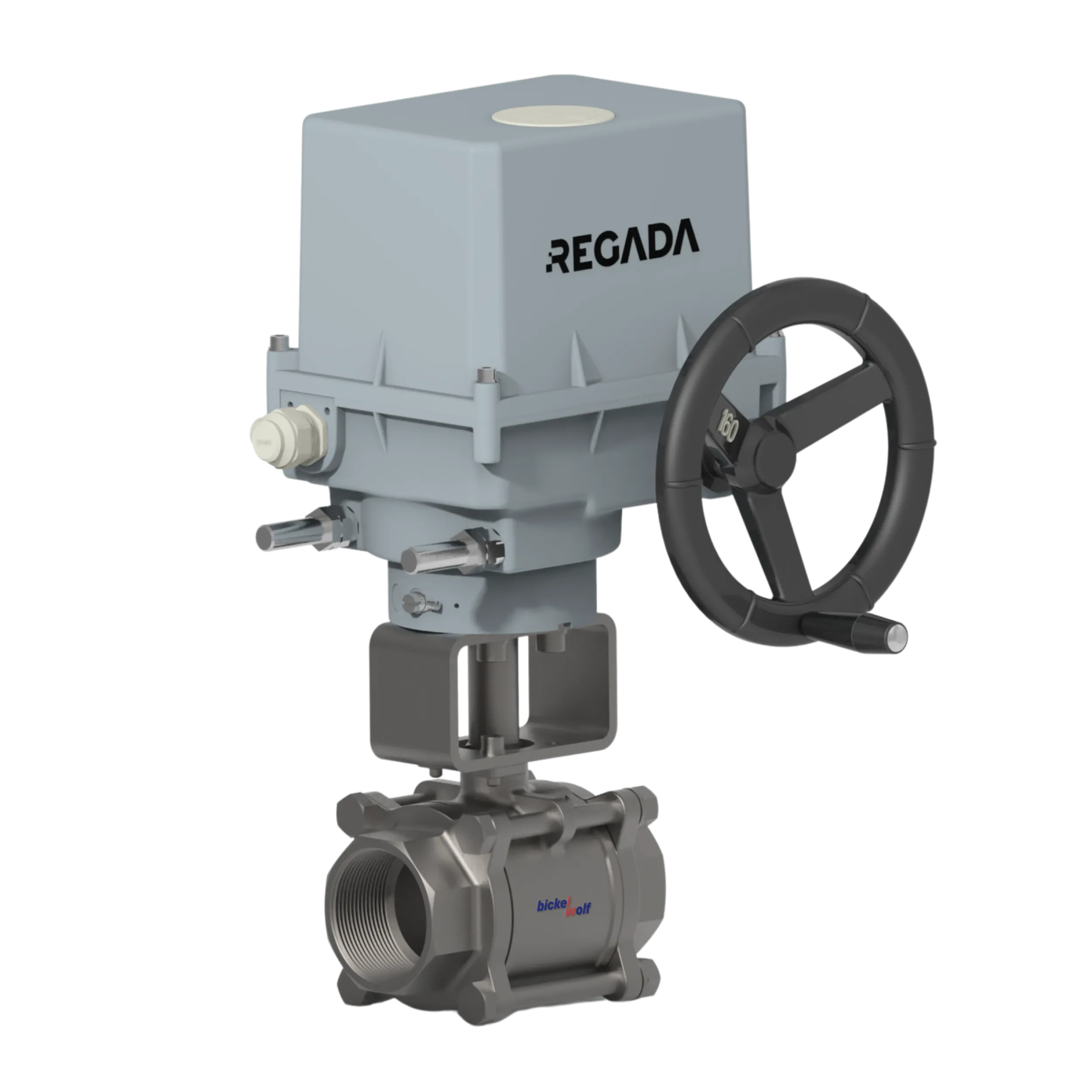

Three-piece threaded ball valve

Three-piece threaded ball valve

Three-piece threaded ball valve

Body construction: DN 8, DN 100
Working pressure: PN 63
Working temperature: -20 to 220 °C
Tightness: Class A
Construction according to: EN 12516
Draft according to: ASME B16.34
Connection parameters: FF BSP thread according to ISO 288-1 and DIN 2999
ATEX: group II category 2G/2D Zone 1 and 21, Zone 2 and 22
Materials: Ball – ASTM A351 CF8M, Telo – EN 1.0619, Seal – PTFE with 50% AISI 316, Shaft seal – PTFE with 25% grafoil
Leak test: EN 12266-1 class A

Hi, my name is Marko. I am ready to assist you.

Ing. Marko Štofan

3 pieces carbon steel ball valve with full bore for Chemical industries, petrochemical industries, hydraulic installation, heating, water distribution, compressed air. Fugitive emission according to TA LUFT for an excellent tightness on the stem and to prevent external leakage PTFE filled with carbon packing, Viton® O ring gasket and PTFE filled with stainless steel seat. Compatible with explosive atmosphere, ATEX Zone 1&21 and Zone 2&22 thanks to the antistatic device. Thanks to the ISO 5211 plate, an actuator can be installed directly on the valve.

More information on the manufacturer's website.
