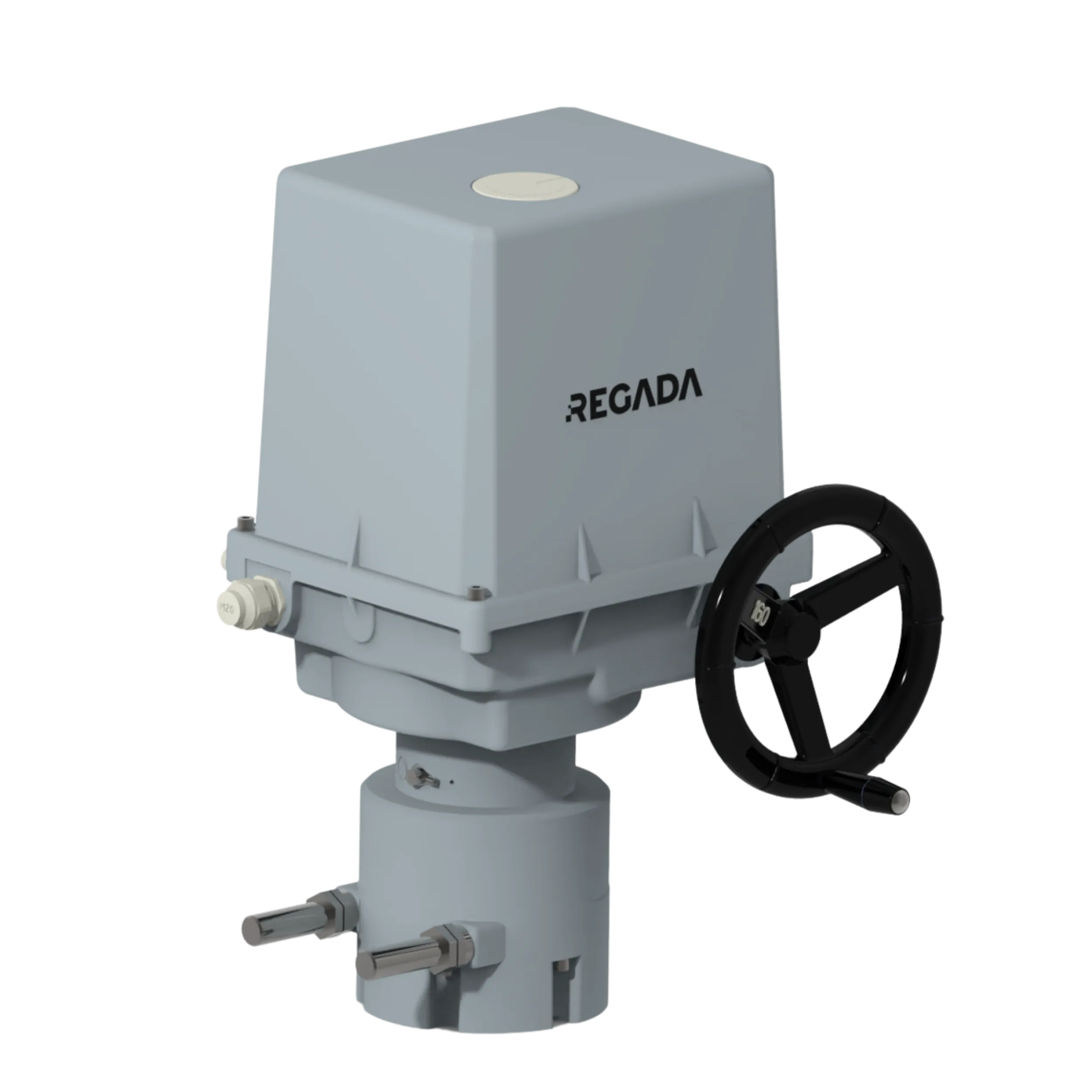

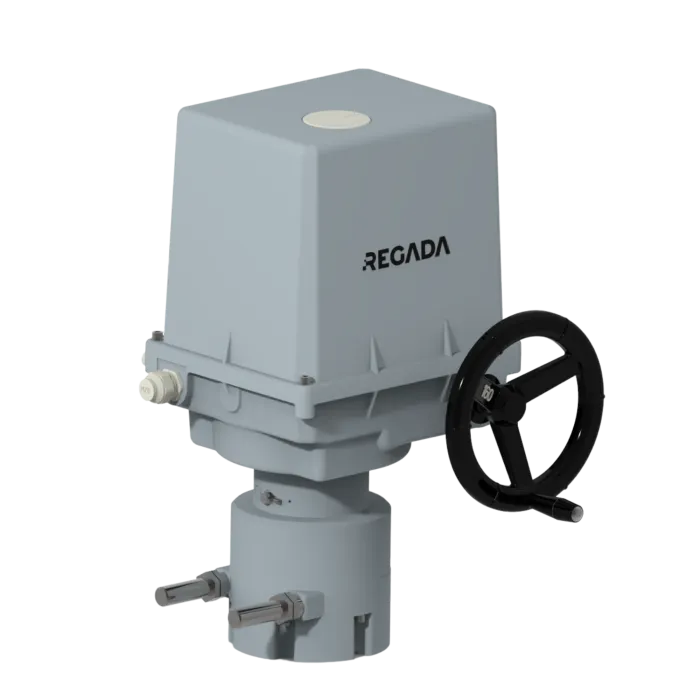

Electric part-turn actuator SP 2.3

Electric part-turn actuator SP 2.3

Electric part-turn actuator SP 2.3

Type number: 283
Industry use: Energy, Water, Industry
Enclosure protection: IP 67, IP 68
Switching-off torque: 290 to 350 Nm
Operating time: 20 to 160 s/90°
Operating angle: 60 to 360 °
Weight: 15 to 20 kg
Ambient temperature: -60 to 55 °C
Flange size: F07, F10
Mouting position: any
contact Configurator

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

Standard equipment

  • Supply voltage:
    • 230 V / 50 Hz
  • Terminal board connection
  • Thermal protection of electromotor
  • 2 torque switches
  • 2 position switches
  • Mechanical connection according to ISO 5211, flange size F07/F10
  • Mechanical position indicator
  • Mechanical stop ends
  • Manual control
  • Enclosure protection IP 67

Additional equipment

  • Supply voltage:
    • 3x400 V, 3x380 V, 220 V, 24 V / 50 Hz
    • 24 V DC
  • Connector connection
  • Reversing unit for 3-phase supply voltage
  • 2 additional position switches
  • Position transmitter:
    • potentiometer single/double 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    • electronic position transmitter, passive/active, 2-wire/3-wire, 0/4 to 20 mA
    • CPT, passive/active, 2-wire/3-wire, 4 to 20 mA
  • Space heater with/without thermal switch
  • Electric local control unit (only to -40°C)
  • Gold coated contacts of microswitches
  • Without end stops
  • Mechanical connection according to ISO 5211, flange size F10
  • Mechanical connection with stand, lever and pulls
  • Enclosure rating IP 68
