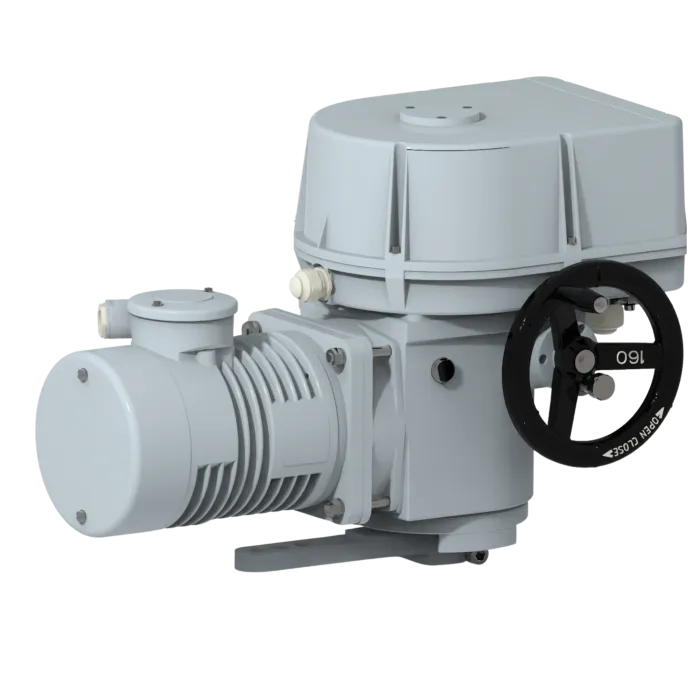

Electric part-turn actuator MPR

Electric part-turn actuator MPR

Type number: 52220
Industry use: Energy, Water, Industry
Enclosure protection: IP 67
Switching-off torque: 25 to 125 Nm
Operating time: 8 to 34 s/90°
Operating angle: 60 to 160 °
Weight: 27 to 34.5 kg
Ambient temperature: -25 to 55 °C
Mouting position: with the motor axis in a horizontal position (deviation +/-15°)
contact Configurator

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

Standard equipment

  • Supply voltage:
    • 230 V / 50 Hz
  • Terminal board connection
  • 2 torque switches
  • 2 position switches
  • Space heater
  • Manual control
  • Mechanical connection via lever, bolts and pull-rod
  • Enclosure protection IP 67

Additional equipment

  • Connector connection
  • 2 additional position switches
  • Position transmitter:
    • potentiometer single/double, 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    • electronic position transmitter, active/passive, 2-wire/3-wire, 0/4 to 20 mA
    • electronic position transmitter, active/passive, 3-wire, 0 to 10 V
    • current CPT, active/passive, 2-wire/3-wire, 0/4 to 20 mA
    • current DCPT 3M, active/passive, 2-wire, 4 to 20 mA

Similar products

Category products

Electric part-turn actuator SP MIKRO

Industry use: Energy, Water, Industry Enclosure protection: IP 65 Switching-off torque: 8 Nm Operating time: 120 s/90° Operating angle: 60 to 120 °
Industry use: Energy, Water, Industry Enclosure protection: IP 65 Switching-off torque: 8 Nm

Electric part-turn actuator SP 0

Industry use: Energy, Water, Industry Enclosure protection: IP 54, IP 67, IP 68 Switching-off torque: 4 to 40 Nm Operating time: 15 to 160 s/90° Operating angle: 90 to 270 °
Industry use: Energy, Water, Industry Enclosure protection: IP 54, IP 67, IP 68 Switching-off torque: 4 to 40 Nm

Electric part-turn actuator SP 0.1

Industry use: Energy, Water, Industry Enclosure protection: IP 65, IP 67, IP 68 Switching-off torque: 16 to 50 Nm Operating time: 10 to 120 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 65, IP 67, IP 68 Switching-off torque: 16 to 50 Nm

Electric part-turn actuator SP 1

Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 46 to 90 Nm Operating time: 10 to 80 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 46 to 90 Nm

Electric part-turn actuator SP 2

Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 72 to 145 Nm Operating time: 5 to 80 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 72 to 145 Nm

Electric part-turn actuator SP 2.3

Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 290 to 350 Nm Operating time: 20 to 160 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 290 to 350 Nm

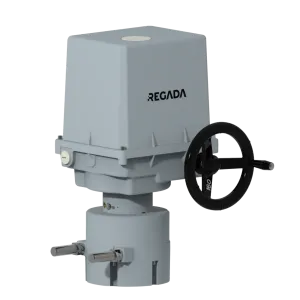

Electric part-turn actuator SP 2.4

Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 575 to 650 Nm Operating time: 40 to 160 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 67, IP 68 Switching-off torque: 575 to 650 Nm

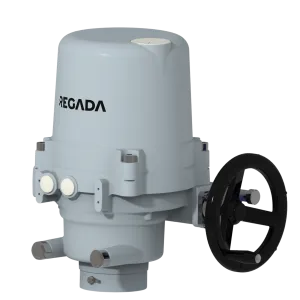

Electric part-turn actuator UP 1

Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 22 to 170 Nm Operating time: 5 to 80 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 22 to 170 Nm

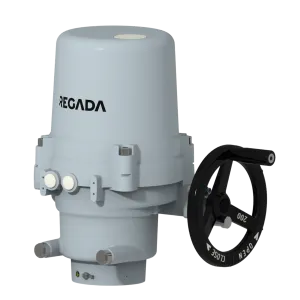

Electric part-turn actuator UP 2

Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 75 to 300 Nm Operating time: 5 to 80 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 75 to 300 Nm

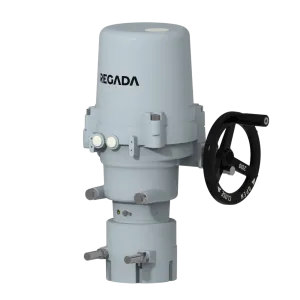

Electric part-turn actuator UP 2.4

Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 110 to 800 Nm Operating time: 20 to 160 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 110 to 800 Nm

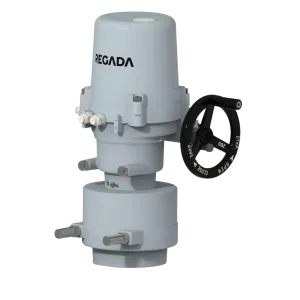

Electric part-turn actuator UP 2.5

Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 300 to 1800 Nm Operating time: 20 to 160 s/90° Operating angle: 60 to 360 °
Industry use: Energy, Water, Industry Enclosure protection: IP 66, IP 68 Switching-off torque: 300 to 1800 Nm

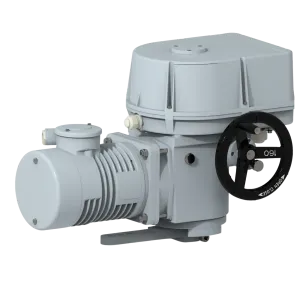

Electric part-turn actuator MPR
