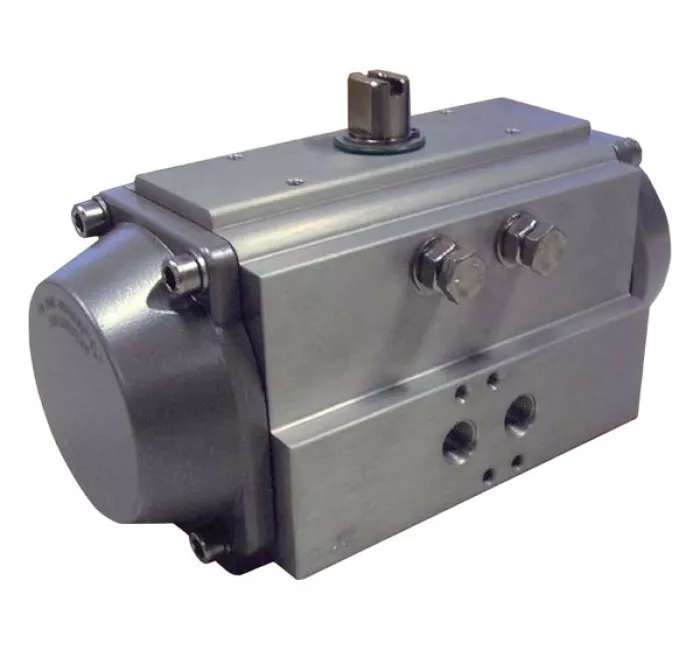

Alphair pneumatic actuator - RE series - with external end stops

Alphair pneumatic actuator - RE series - with external end stops

Alphair pneumatic actuator - RE series - with external end stops

Output torque of double-acting drives: 2,3 to 13337 Nm
Output torque of single-acting drives (from air): 2.3 to 10368 Nm
Output torque of single-acting drives (from springs): 3.8 to 5997 Nm
Air pressure: max. 8 (10) Bar
Operating angle: 90 °
Supply: dry or lubricated filtered compressed air
Ambient temperature: -20 to 80 °C
Mouting position: any

Hi, my name is Marko. I will be glad to help you

Ing. Marko Štofan

Standard equipment

  • Working angle: 90°
  • Working temperature: -20 to +80°C
  • Surface protection: AV (hard anodizing protection)
  • Mechanical connection: ISO 5211 / DIN 3337
  • Connection of switchboards and accessories according to the NAMUR-VDI/VDE 3845 standard

Additional equipment

  • Working temperature: -40 to +80°C or -20 to +150°C
  • Location indicator
  • Surface protection: NN (nickel plating with high phosphorus content); TF-TF (anodized + PTFE coating)
