Electric linear actuator ST 2-A

Electric linear actuator ST 2-A

Electric linear actuator ST 2-A

Industry use: Energy
Enclosure protection: IP 67
Switching-off thrust: 9000 to 25000 N
Operating speed: 10 to 120 mm/min
Operating stroke: 8 to 100 mm
Weight: 17 to 21.5 kg
Ambient temperature: -50 to 55 °C
Mouting position: any

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

Standard equipment

  • Supply voltage:
    • 230 V / 50 Hz
  • Terminal board connection
  • 2 position switches
  • 2 thrust switches
  • Mechanical position indicator
  • Mechanical connection - pillars
  • Manual control
  • Enclosure protection IP 55

Additional equipment

  • Supply voltage:
    • 3x400 V, 3x380 V, 220 V / 50 Hz
  • Position transmitter:
    • potentiometer single/double, 1x100 Ω, 1x2000 Ω, 2x100 Ω, 2x2000 Ω
    • electronic position transmitter, active/passive, 2-wire/3-wire, 0/4 to 20 mA
    • current CPT, active/passive, 2-wire/3-wire, 0/4 to 20 mA
  • 2 additional position switches
  • Mechanical connection - flange
  • Mechanical connection ISO 5210, flange F07
  • Mechanical connection ISO 5210, flange F10
  • Gold coated contacts of microswitches
  • Enclosure protection IP 67

Similar products

Control valves V41 115 540

Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -50 to 400 °C Face-to-face length: EN 558-1 Materials: Body - Steel 42 2643, Cone - Stainless steel, Saddle - Stainless steel
Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -50 to 400 °C
View product View btn-arrow-small

Control valves V41 115 616

Nominal size: DN 15, DN 150 Working pressure: PN 16 Working temperature: 300 °C Face-to-face length: EN 558-1 Materials: Body - Gray cast iron GG25, Cone - Stainless steel, Saddle - Stainless steel
Nominal size: DN 15, DN 150 Working pressure: PN 16 Working temperature: 300 °C
View product View btn-arrow-small

Bellows shut-off valves V25 115 540

Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -20 to 400 °C Face-to-face length: EN 558-1 Materials: Body - Steel 42 2643, Cone - DN 15 – 50 (Stainless steel), DN 65 – 150 (Carbon steel), Saddle - Stainless steel
Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -20 to 400 °C
View product View btn-arrow-small

Shut-off valves V30 115 540

Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -50 to 400 °C Face-to-face length: EN 558-1 Materials: Body - Steel 42 2643, Cone - DN 15 – 100 (Stainless steel), DN 125 – 150 (Carbon steel), Saddle - Stainless steel
Nominal size: DN 15, DN 150 Working pressure: PN 40 Working temperature: -50 to 400 °C
View product View btn-arrow-small

Shut-off valves V30 115 616

Nominal size: DN 15, DN 150 Working pressure: PN 16 Working temperature: 300 °C Face-to-face length: EN 558-1 Materials: Body - Gray cast iron GG25, Cone - Stainless steel, Saddle - Stainless steel
Nominal size: DN 15, DN 150 Working pressure: PN 16 Working temperature: 300 °C
View product View btn-arrow-small

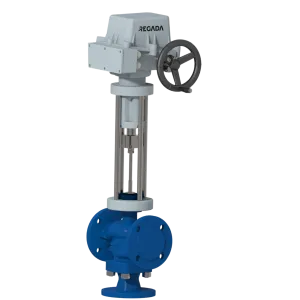

Three-way shut-off and control valves Series RV 2x4 (Ex)

Nominal size: DN 15, DN 400 Working pressure: PN 6, PN 16, PN 25, PN 40 Working temperature: -10 to 300 °C Connection parameters: ČSN-EN 1092-1/2 (flange type B1) Face-to-face length: row 1 according to ČSN-EN 558
Nominal size: DN 15, DN 400 Working pressure: PN 6, PN 16, PN 25, PN 40 Working temperature: -10 to 300 °C
View product View btn-arrow-small

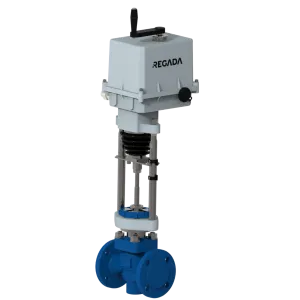

Two-way shut-off and control valves Series RV 2x0 (Ex)

Nominal size: DN 15, DN 400 Working pressure: PN 6, PN 16, PN 25, PN 40 Working temperature: -10 to 150 °C Connection parameters: ČSN-EN 1092-1 (flange type B1) Face-to-face length: row 1 according to ČSN-EN 558-1
Nominal size: DN 15, DN 400 Working pressure: PN 6, PN 16, PN 25, PN 40 Working temperature: -10 to 150 °C
View product View btn-arrow-small

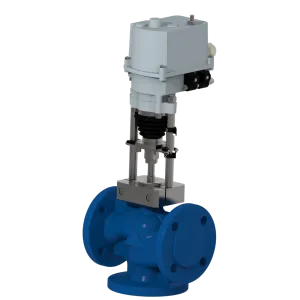

Two-way control valves RV 113 R and three-way RV 113 M
