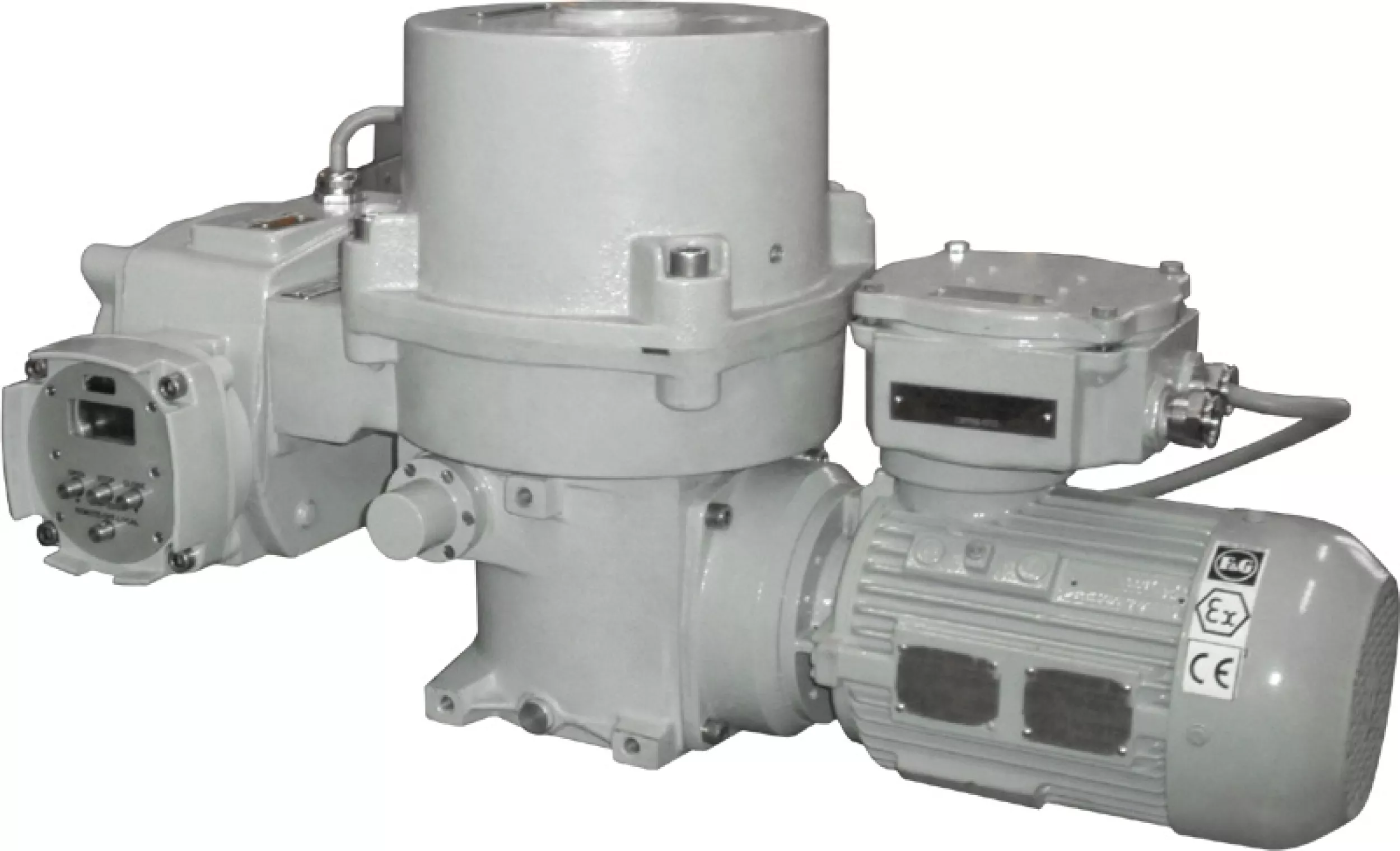

Explosion-proof electric multi-turn actuator MOR 3PA-Ex

Name: Explosion-proof electric multi-turn actuator MOR 3PA-Ex
Brand: Regada

Type number: 109

Industry use: Oil and gas, Dust

Enclosure protection: IP 66

Switching-off torque: 40 to 150 Nm

Operating time: 16 to 95 min−1

Revolutions: 1 to 1000

Weight: 46 to 57 kg

Ambient temperature: -50 to 60 °C

Flange size: F10, F14

Mouting position: any

Type of protection: II 2G Ex db eb IIC T4/T5 Gb, II 2D Ex tb IIIC T135°C Db

Hi, my name is Marko. I will be glad to help you.

Ing. Marko Štofan

+421 51 7480 462

regada@regada.sk

Standard equipment and functions with DMS3

Supply voltage:
- 3x400 V / 50 Hz
Automatic phase correction
Terminal board connection
Thermal protection of electromotor against overheating
Switching off in end positions from position and from torque
Adjustment of switching-off torque from 50% to 100%
Torque blocking in end positions
Torque blocking during the start
7 freely programmable relays R1, R2, RE1 ... RE5 (18 functions) (Not valid for Profibus and Modbus)
2 relays READY (Not valid for Profibus and Modbus)
Control by unified signal 0/4 - 20 mA, 4 - 12 mA, 12 - 20 mA, or 0/2 - 10 V (not valid for Profibus and Modbus)
Control by permanent voltage (+24 V DC) - OPEN, CLOSE
Impulse control (inching duty) (+24 V DC) - OPEN, STOP, CLOSE
Timing mode / regime of operation
Safety function ESD (Failure reaction)
Electronic position transmitter 4 to 20 mA passive (not for DMS3 in 2P version) (not valid for Profibus and Modbus)
Auxiliary voltage output 24 V DC, max. 40 mA for supply of the control inputs and transmitter
Output for failure messages
Space heater operated by control unit
LED position indicator
Communication interface RS 232
Program for parameters setting by PC
Mechanical connection ISO 5210, flange size F10, shape B3, C, D
Manual control
Enclosure protection IP 66

Additional equipment

Supply voltage:
- 3x380 V, 220 V / 50 Hz
Communication cable DB-9F/RJ45
Reversing unit for 3-phase supply voltage
Local control unit for electric actuators with DMS3 system
Version with control board PROFIBUS DP V0/V1
Version with control board MODBUS RTU
Mechanical connection
- ISO 5210, flange size F10, shape A, B1
- ISO 5210, flange size F14, shape C
- ГOCT P 55510, shape AK, AČ
- other - non-standard
