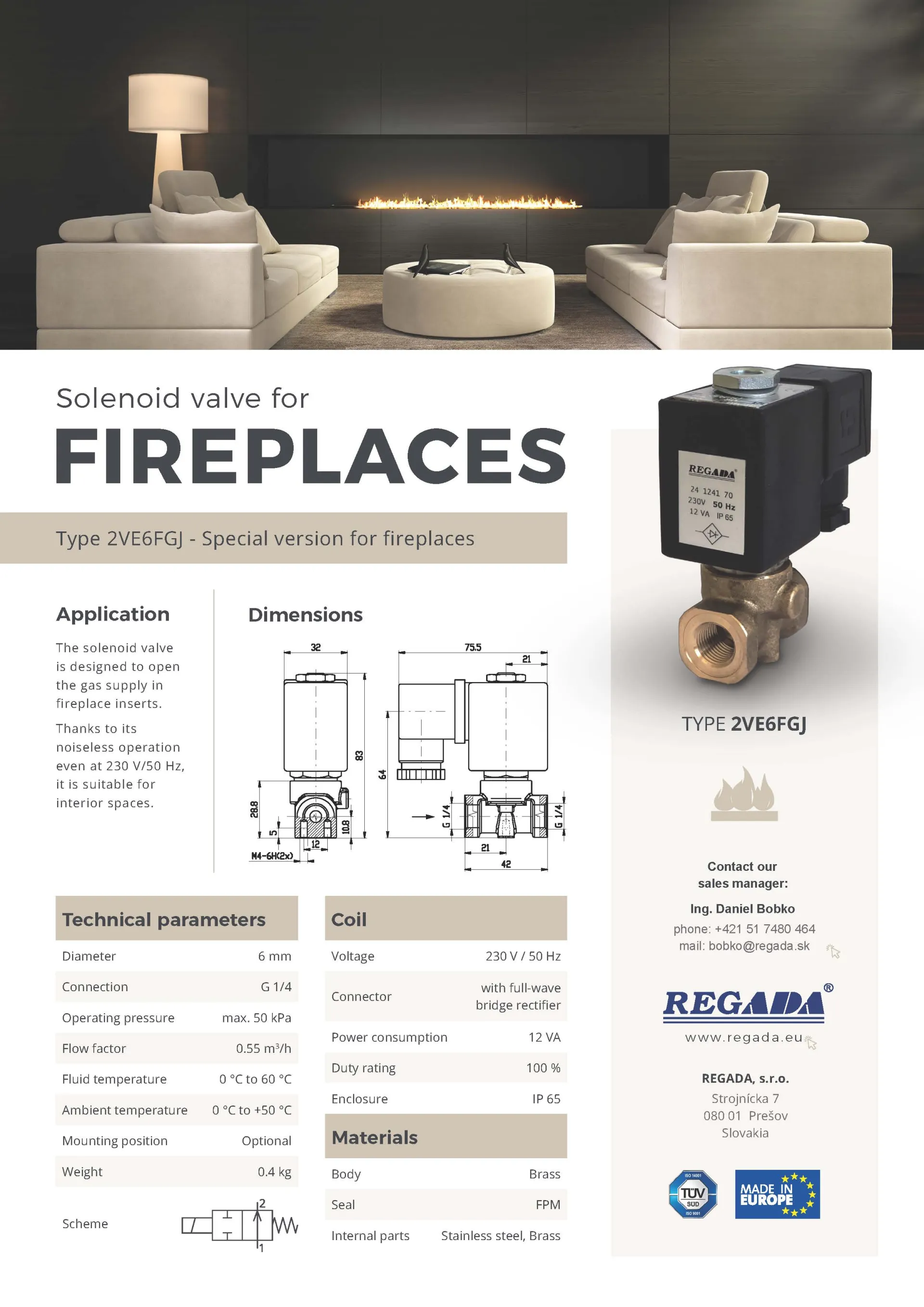

Especially for the heating systems industry, we have developed an electromagnetic two-way valve that is directly controlled, 2VE6FGJ. Their function is closed in the basic position. Valves serve to control the flow of heating gas in fireplace applications.
Excellent tightness is ensured by the FPM seal, the valve body is made of brass, while the internal parts were made using anti-corrosion steel. Quality materials
are the main reason for the long service life of the valves. The supply voltage can be used at the level of 230 V AC, but also DC 24 V, which results in a power input of 15 VA, or 10 W. The valve has electrical protection IP 65 and is suitable for permanent load. It can be installed in any position in an environment with an ambient temperature from -10˚ to +50˚C and a medium temperature of up to 60˚C. The light was set to DN 6, with a connection thread G1/4, a maximum pressure drop of 50 kPa and a maximum flow rate of 0.6 m3/h.
